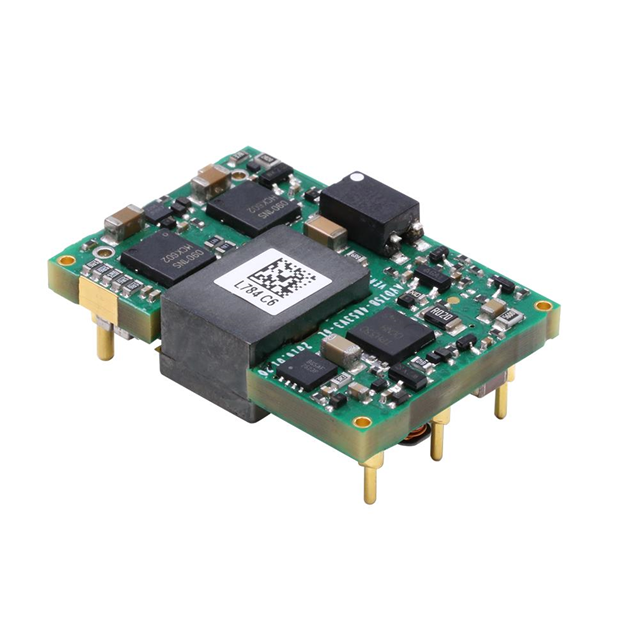

Same model may have multiple batches, images only for reference.

AVD75B-48S3V3TL

Name: AVD75B-48S3V3TL
Brand: Artesyn Embedded Technologies
SKU: 1336747
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	AVD75B-48S3V3TL
Manufacturer	Artesyn Embedded Technologies
Catalog	Power Supplies Board Mount DCDC Converters
Description	75W, 36 - 75VIN, SINGLE, 3.3V@23 / Isolated Module DC DC Converter 1 Output 3.3V 23A 36V - 75V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Artesyn Embedded Power
Series	AVD75 (75W)
Package	Box
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	3.3V
Current - Output (Max)	23A
Power (Watts)	76 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Adjustable Output, Remote On/Off
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	91.5%
Mounting Type	Through Hole
Package / Case	Sixteenth Brick
Size / Dimension	1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.4mm)
Supplier Device Package	Sixteenth Brick
Control Features	Enable, Active Low
Approval Agency	CE, cUL, TUV, UL
Standard Number	60950-1; 62368-1
Standard Package	192
MSL Level	3 (168 Hours)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1336747-AVD75B-48S3V3TL
Ultra Librarian 3D Model	Ultra Librarian AVD75B-48S3V3TL CAD Model

Alternative Products

Description

The Artesyn Embedded Power AVD75 (75W) is an isolated module DC DC converter with an adjustable output and remote on/off feature.

Power Output: 76W
Maximum Current Output: 23A
Input Voltage: 36V to 75V
Output Voltage: 3.3V
Package: Sixteenth brick
Operating Temperature: -40°C to 85°C
ECCN: EAR99
Market Popularity: Yes
MSL Level: 3 (168 hours)
HTSUS: 8504.40.9580
Approvals: CE, cUL, TUV, and UL
Standard Numbers: 60950-1 and 62368-1
