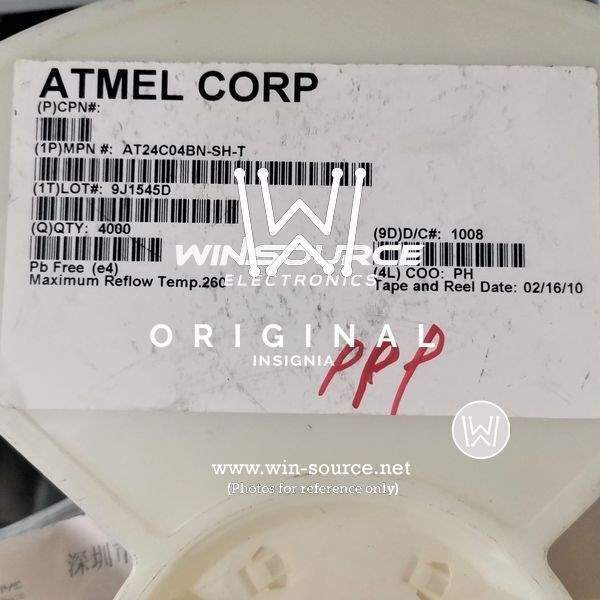

AT24C04BN-SH-T Real Image AT24C04BN-SH-T label picture AT24C04BN-SH-T real image
Same model may have multiple batches, images only for reference.
AT24C04BN-SH-T Real Image AT24C04BN-SH-T label picture AT24C04BN-SH-T real image
AT24C04BN-SH-T Real Image AT24C04BN-SH-T label picture AT24C04BN-SH-T real image
Same model may have multiple batches, images only for reference.

AT24C04BN-SH-T

Part No AT24C04BN-SH-T
Manufacturer Atmel
Catalog EEPROM
Description IC EEPROM 4KBIT 1MHZ 8SOIC
Datasheet
AT24C04BN-SH-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Reel - TR
Status Obsolete(EOL)
Memory Format EEPROM
Technology EEPROM
Memory Size 4Kb (512 x 8)
Max Frequency 1MHz
Access Time 550ns
Supply Voltage - Operating 1.8 V to 5.5 V
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 8-SOIC
Win Source Part Number 078601-AT24C04BN-SH-T
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian AT24C04BN-SH-T CAD Model

Description

Product Description

The AT24C04BN-SH-T is a 4Kb EEPROM designed for streamlined data processing and superior data retention. Utilizing the I2C serial interface, this EEPROM embodies high performance and seamless connectivity, key for modern electronics applications.

Features and Benefits

  • High Efficiency: Designed to optimize energy use, extending battery life in portable applications.
  • Wide Temperature Range: Operates reliably across broad environmental conditions.
  • Easy Interface: Simple integration through I2C communication, reducing development time.
  • Long Data Retention: Ensures data stability with a retention life of 100 years.

Applications

  • Consumer Electronics
  • Logistics Systems
  • Telecommunication Devices
  • Data Acquisition Systems

Additional Details

The AT24C04BN-SH-T EEPROM provides efficient data storage solutions tailored for versatile applications. It complements designs requiring reliable non-volatile memory.
