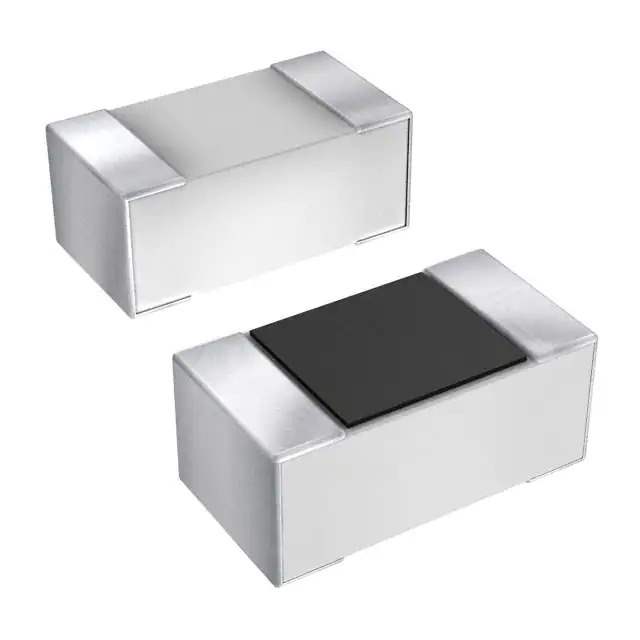

04023J3R9BBWTR Real Image
Same model may have multiple batches, images only for reference.

04023J3R9BBWTR

Part No 04023J3R9BBWTR
Manufacturer AVX Corp/Kyocera Corp
Catalog Thin Film Capacitors
Description CAP THIN FILM 3.9PF 25V 0402
Datasheet
04023J3R9BBWTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Thin Film Capacitors
Mfr AVX Corp/Kyocera Corp
Series Accu-P®
Package Tape & Reel
Product Status Active
Capacitance 3.9 pF
Tolerance ±0.1pF
Voltage - Rated 25 V
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric)
Temperature Range - Operating -55°C ~ 125°C
Features RF, High Q, Low Loss
Size / Dimension 0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max) 0.020" (0.50mm)
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 853186-04023J3R9BBWTR
Ultra Librarian 3D Model Ultra Librarian 04023J3R9BBWTR CAD Model

Description

The 853186-04023J3R9BBWTR is a thin film capacitor from AVX Corp/Kyocera Corp.

  • Series: Accu-P™ series
  • Application: Designed for high-frequency applications
  • Capacitance: 3.9 pF
  • Voltage Rating: 25V
  • Package: 0402 (1005 Metric)
  • Dimensions: 0.039" L x 0.022" W (1.00mm x 0.55mm)
  • Seated Height: 0.020" (0.50mm)
  • Mounting: Suitable for surface mount mounting
  • Temperature Range: -55°C to 125°C
  • Tolerance: ±0.1pF
  • Features: High Q and low loss
  • Standard Package: 5,000 pcs
