Same model may have multiple batches, images only for reference.

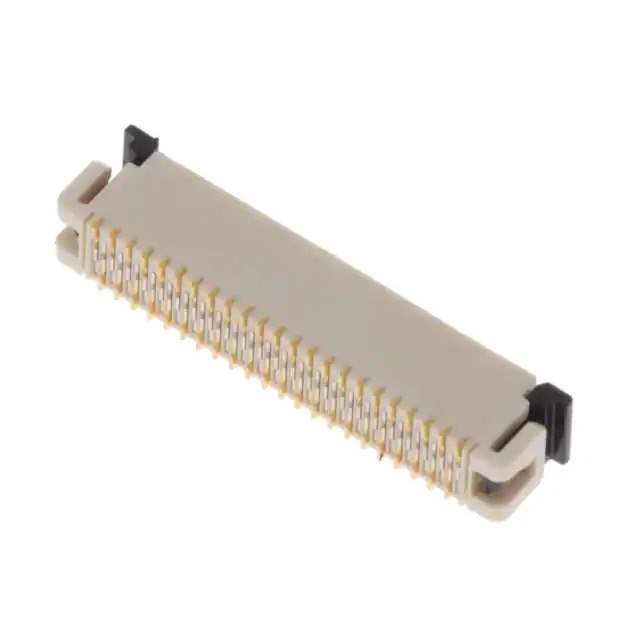

046841045100846+ Real Image
Same model may have multiple batches, images only for reference.

046841045100846+

Part No 046841045100846+
Manufacturer AVX Corp/Kyocera Corp
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC VERT 45POS 0.3MM SMD / 45 Position FPC Connector Contacts, Vertical - 1 Sided 0.012" (0.30mm) Surface Mount
Datasheet
046841045100846+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr AVX Corp/Kyocera Corp
Series 6841, Kyocera
Package Tape & Reel
Product Status Active
Flat Flex Type FPC
Mounting Type Surface Mount
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 45
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.142" (3.60mm)
Locking Feature Slide Lock
Cable End Type Straight
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Plastic
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Current Rating (Amps) 0.2A
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 853285-046841045100846+
Ultra Librarian 3D Model Ultra Librarian 046841045100846+ CAD Model

Description

The Kyocera 6841 series FFC/FPC connector assembly is a versatile and reliable solution for connecting flat flexible cables from AVX Corp/Kyocera Corp.

  • Pitch: 0.012" (0.30mm)
  • Positions: 45
  • Feature: Zero insertion force (ZIF)
  • Termination: Solder
  • Contact Finish: Gold
  • Mounting Type: Surface mount
  • Voltage Rating: 50V
  • Temperature Range: -40°C to 85°C
  • Housing: Plastic
  • Package: 2,000 pcs
