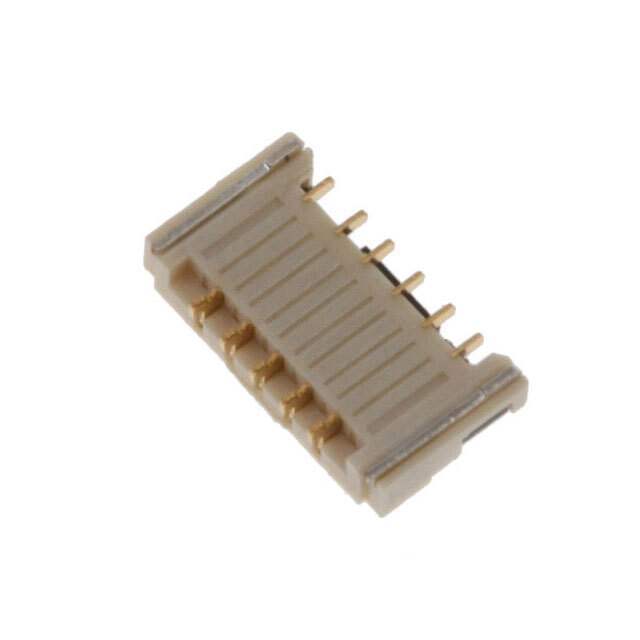

Same model may have multiple batches, images only for reference.
046844711002846+ KYOCERA AVX
Same model may have multiple batches, images only for reference.

046844711002846+

Part No 046844711002846+
Manufacturer AVX Corp/Kyocera Corp
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 11POS 0.3MM R/A
Datasheet
046844711002846+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer KYOCERA AVX
Part Status Active
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 11
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.037" (0.95mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Ultra Librarian 3D Model Ultra Librarian 046844711002846+ CAD Model

Description

11 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
