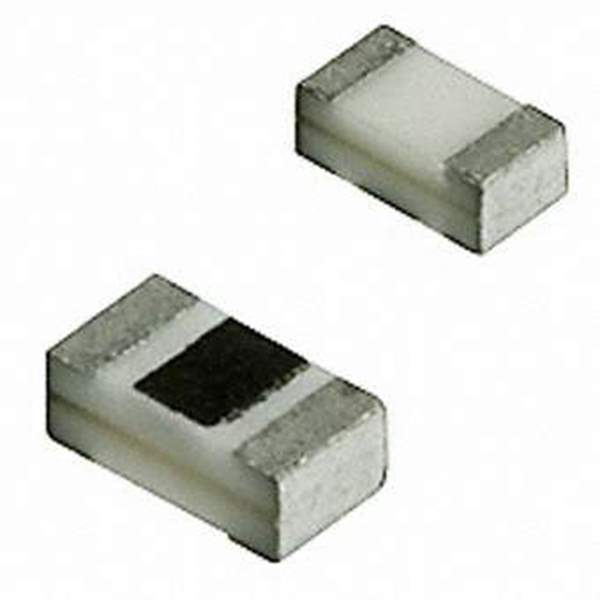

08055J1R5BAWTR Real Image1 08055J1R5BAWTR Real Image2
Same model may have multiple batches, images only for reference.
08055J1R5BAWTR Real Image1 08055J1R5BAWTR Real Image2
08055J1R5BAWTR Real Image1 08055J1R5BAWTR Real Image2
Same model may have multiple batches, images only for reference.

08055J1R5BAWTR

Part No 08055J1R5BAWTR
Manufacturer AVX Corp/Kyocera Corp
Catalog Thin Film Capacitors
Description CAP THIN FILM 1.5PF 50V 0805 / 1.5 pF Thin Film Capacitor 50 V 0805 (2012 Metric)
Datasheet
08055J1R5BAWTR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Thin Film Capacitors
Mfr AVX Corp/Kyocera Corp
Series Accu-F®
Package Tape & Reel (TR)
Product Status Obsolete
Capacitance 1.5 pF
Tolerance ±0.1pF
Voltage - Rated 50 V
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Temperature Range - Operating -55°C ~ 125°C
Features RF, High Q, Low Loss
Size / Dimension 0.079" L x 0.050" W (2.00mm x 1.27mm)
Height - Seated (Max) 0.029" (0.73mm)
RoHS Status RoHS non-compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0040
Standard Package 3,000 pcs
Win Source Part Number 1380412-08055J1R5BAWTR
Ultra Librarian 3D Model Ultra Librarian 08055J1R5BAWTR CAD Model

Description

The 1380412-08055J1R5BAWTR is a thin film capacitor from AVX Corp/Kyocera Corp.

  • Series: Accu-F™
  • Application: RF applications
  • Capacitance: 1.5 pF
  • Voltage Rating: 50V
  • Mounting: Surface mount
  • Package: 0805 (2012 Metric)
  • Tolerance: ±0.1pF
  • Height: 0.029" (0.73mm)
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • Package: Tape and reel
  • Standard Package: 3,000 pcs
  • Status: Obsolete
  • RoHS Compliant: No
