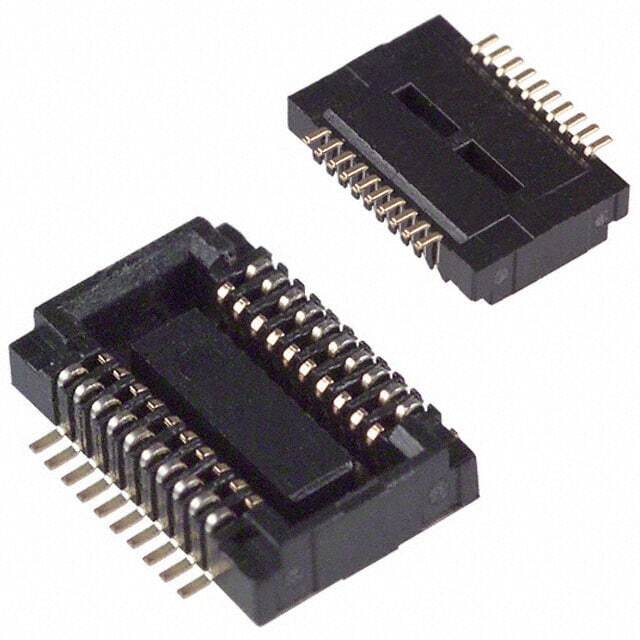

245602020000829

Name: 245602020000829
Brand: AVX Corp/Kyocera Corp
SKU: 854683
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	245602020000829
Manufacturer	AVX Corp/Kyocera Corp
Catalog	Rectangular Connectors
Description	CONN RCPT 20POS SMD GOLD / 20 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet	245602020000829 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	AVX Corp/Kyocera Corp
Series	5602, Kyocera
Package	Tape & Reel (TR)Cut Tape (CT)
Product Status	Obsolete
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	20
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting Type	Surface Mount
Contact Finish	Gold
Contact Finish Thickness	4.00µin (0.100µm)
Mated Stacking Heights	1.5mm
Height Above Board	0.057" (1.45mm)
Base Product Number	245602
Standard Package	2,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	854683-245602020000829
Ultra Librarian 3D Model	Ultra Librarian 245602020000829 CAD Model

Alternative Products

Description

The Kyocera 5602 series rectangular connector array is a reliable and versatile component for board-to-board connections.

Positions: 20
Pitch: 0.016" (0.40mm)
Connector Type: receptacle
Contacts: center strip
Contact Finish: gold-plated
Mounting Type: surface mountable
Package: tape and reel or cut tape
Height: 0.057" (1.45mm) above the board
Mounting Feature: surface mount
Standard Package: 2,000 pcs
Manufacturer: Kyocera
