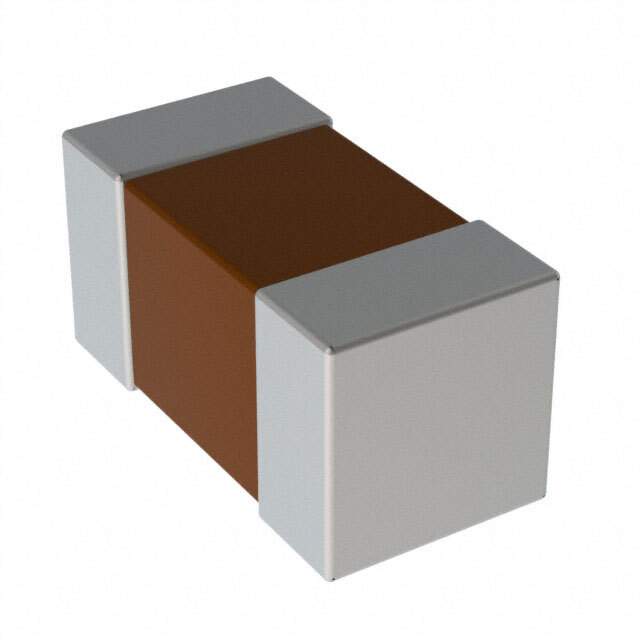

GG020105100N2P Real Image
Same model may have multiple batches, images only for reference.

GG020105100N2P

Part No GG020105100N2P
Manufacturer AVX Corp/Kyocera Corp
Catalog TVS - Diodes
Description TVS DIODE 5VWM 12VC 0201 / 12V Clamp 6A (8/20µs) Ipp Tvs Diode Surface Mount 0201 (0603 Metric)
Datasheet
GG020105100N2P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr KYOCERA AVX
Series GiGUARD
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V
Voltage - Breakdown (Min) 5.5V
Voltage - Clamping (Max) @ Ipp 12V
Current - Peak Pulse (10/1000µs) 6A (8/20µs)
Power - Peak Pulse 60W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 10pF @ 1MHz
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 0201 (0603 Metric)
Supplier Device Package 0201 (0603 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 478-10590-1,478-10590-2,478-10590-6
Standard Package 15,000
Win Source Part Number 1033544-GG020105100N2P
Ultra Librarian 3D Model Ultra Librarian GG020105100N2P CAD Model

Description

The GiGUARD Zener TVS diode is a high-quality electronic component designed to provide circuit protection for general-purpose applications and is supplied by KYOCERA AVX.

  • Voltage Reverse Standoff: 5V
  • Breakdown Voltage: 5.5V
  • Clamping Voltage (Max): 12V
  • Peak Pulse Power: 60W
  • Capacitance: 10pF @ 1MHz
  • Peak Pulse Current: 6A (8/20μs)
  • Package/Case: 0201 (0603 Metric)
  • Operating Temperature Range: -55°C to 125°C
  • Channel Direction: Bidirectional
  • Standard Package: 15,000
  • Mounting Style: SMD (SMT)
  • Alternative Parts (Cross-Reference): Available
