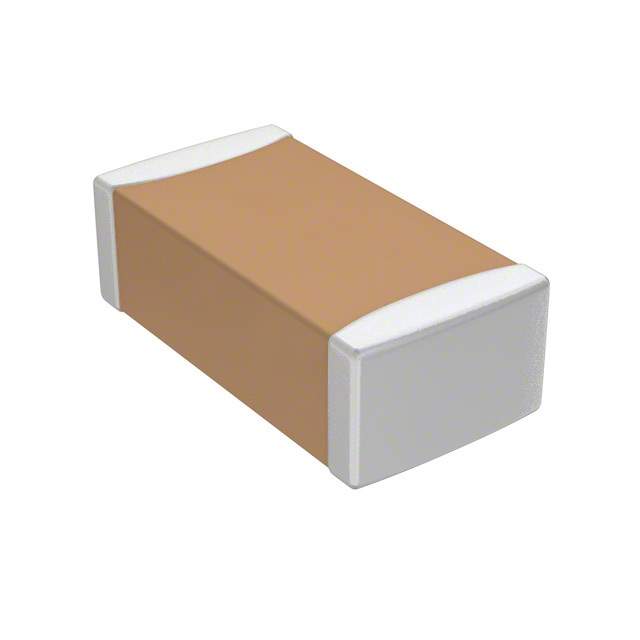

Same model may have multiple batches, images only for reference.

GG0402050R3C2P

Name: GG0402050R3C2P
Brand: AVX Corp/Kyocera Corp
SKU: 1334884
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	GG0402050R3C2P
Manufacturer	AVX Corp/Kyocera Corp
Catalog	TVS - Diodes
Description	TVS DIODE 5VWM 15.5VC 0402 / 15.5V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount 0402 (1005 Metric)
Datasheet	GG0402050R3C2P Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Manufacturer	KYOCERA AVX
Packaging	Reel - TR
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5V
Voltage - Breakdown (Min)	7V
Voltage - Clamping (Max) @ Ipp	15.5V
Current - Peak Pulse (10/1000µs)	3A (8/20µs)
Power - Peak Pulse	46W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	0.3pF @ 1MHz
Temperature Range - Operating	-55°C ~ 125°C
Mounting	Surface Mount
Case / Package	0402 (1005 Metric)
Supplier Device Package	0402 (1005 Metric)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Part Number	478-10591-1,478-10591-2,478-10591-6
Standard Package	10,000
Win Source Part Number	1334884-GG0402050R3C2P
Ultra Librarian 3D Model	Ultra Librarian GG0402050R3C2P CAD Model

Alternative Products

Description

KYOCERA AVX Zener diode is a bidirectional channel electronic component that provides protection against voltage spikes and surges.

Voltage - Reverse Standoff (Max): 5V
Voltage - Breakdown (Min): 7V
Power - Peak Pulse: 46W
Voltage - Clamping (Ipp): 15.5V
Mounting Type: Surface Mount
Capacitance @ Frequency: 0.3pF @ 1MHz
Current - Peak Pulse (10/1000µs): 3A
Application: General Purpose
Operating Temperature: -55°C ~ 125°C
Package / Case: 0402 (1005 Metric)
Packaging: Reel
Units per Reel: 10000
ROHS3 Compliant: Yes
REACH: Compliant
ECCN: EAR99
