Same model may have multiple batches, images only for reference.

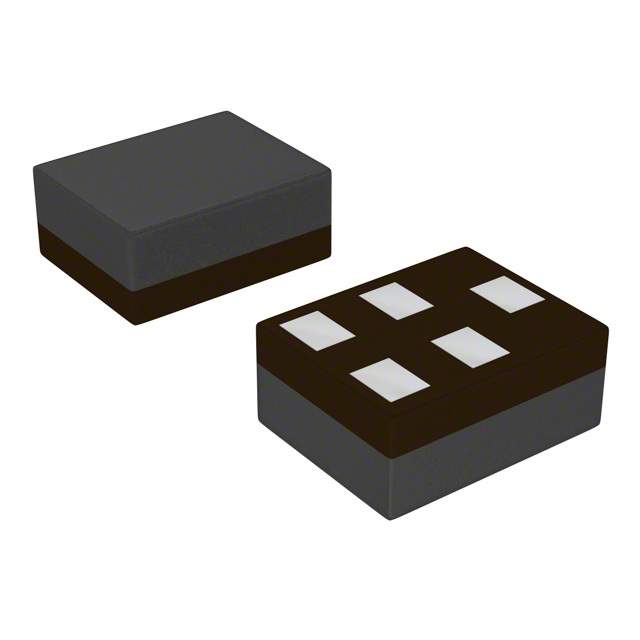

SF14-1575M5UBB1 Real Image
Same model may have multiple batches, images only for reference.

SF14-1575M5UBB1

Part No SF14-1575M5UBB1
Manufacturer AVX Corp/Kyocera Corp
Catalog SAW Filters
Description FILTER SAW 1.57542GHZ 5SMD / SAW Filter RF 1575MHz 2dB 100Ohm SMD 5 Pin Tape
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer AVX Corp/Kyocera Corp
Series SF, Kyocera
Packaging Reel package
Frequency - Center 1.57542GHz
Bandwidth 2MHz
Insertion Loss 1.7dB
Applications GPS
Mounting SMD
Package 5-SMD, No Lead
Height (Maximum) 0.028" (0.70mm)
Dimension 0.055" L x 0.043" W (1.40mm x 1.10mm)
Win Source Part Number 794083-SF14-1575M5UBB1
Popularity Medium
Supply and Demand Status Limited
Family Name SF14
Introduction Date September 06, 2013
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian SF14-1575M5UBB1 CAD Model

Description

The SF14-1575M5UBB1 is a GPS filter manufactured by AVX Corp/Kyocera Corp.

  • Package: 5-SMD, no-lead
  • Bandwidth: 2MHz
  • Insertion Loss: 1.7dB
  • Frequency-Center: 1.57542GHz
  • Series: SF14
  • Dimensions: 0.055" L x 0.043" W (1.40mm x 1.10mm)
  • Maximum Height: 0.028" (0.70mm)
  • Mounting: SMD
  • Applications: GPS
  • Introduction Date: September 06, 2013
  • Estimated EOL Date: 2029
  • ECCN: EAR99
