Same model may have multiple batches, images only for reference.

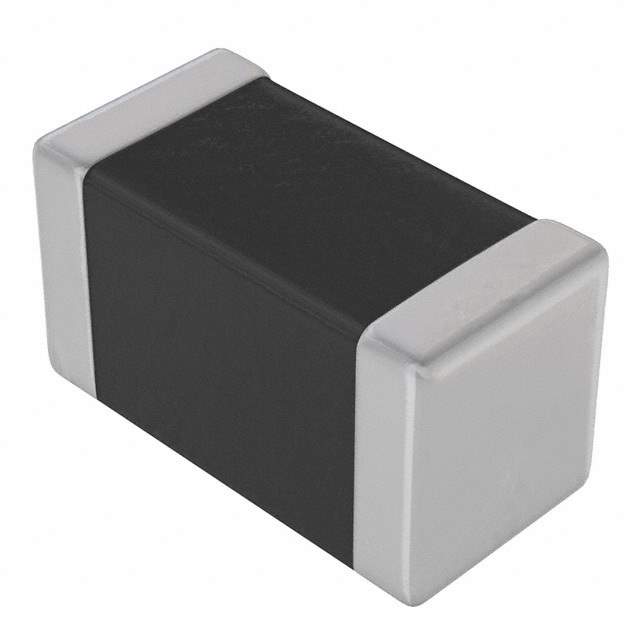

VCAS06LC18X500TP Real Image
Same model may have multiple batches, images only for reference.

VCAS06LC18X500TP

Part No VCAS06LC18X500TP
Manufacturer AVX Corp/Kyocera Corp
Catalog TVS - Varistors, MOVs
Description VARISTOR 32.5V 30A 0603 / 32.5 V 30 A Varistor 1 Circuit Surface Mount, MLCV 0603 (1608 Metric)
Datasheet
VCAS06LC18X500TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr KYOCERA AVX
Series Automotive, AEC-Q200, StaticGuard
Package Tape & Reel
Maximum AC Volts 14 V
Maximum DC Volts 18 V
Varistor Voltage (Min) 25 V
Varistor Voltage (Typ) 32.5 V
Varistor Voltage (Max) 40 V
Current - Surge 30 A
Energy 0.05J
Number of Circuits 1
Capacitance @ Frequency 50 pF @ 1 MHz
Temperature Range - Operating -55°C ~ 125°C (TA)
Mounting Type Surface Mount, MLCV
Package / Case 0603 (1608 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Other Names 478-VCAS06LC18X500TPTR,478-VCAS06LC18X500TPDKR,478-VCAS06LC18X500TPCT,VCAS06LC18X500TP-ND
Standard Package 10,000
Win Source Part Number 959926-VCAS06LC18X500TP
Ultra Librarian 3D Model Ultra Librarian VCAS06LC18X500TP CAD Model

Description

The 959926-VCAS06LC18X500TP is a TVS varistor from the StaticGuard series of AVX Corporation. AVX Corporation manufactures it.

  • Series: StaticGuard
  • Application: Automotive, AEC-Q200
  • Capacitance: 50 pF @ 1 MHz
  • Varistor Voltage: 25V to 40V
  • Surge Current: 30A
  • AC Volts (Max): 14V
  • DC Volts (Max): 18V
  • Energy: 0.05J
  • Mounting: Surface Mount, MLCV
  • Package/Case: 0603 (1608 Metric)
  • Packaging: Tape & reel
  • Temperature Range: -55°C ~ 125°C (TA)
