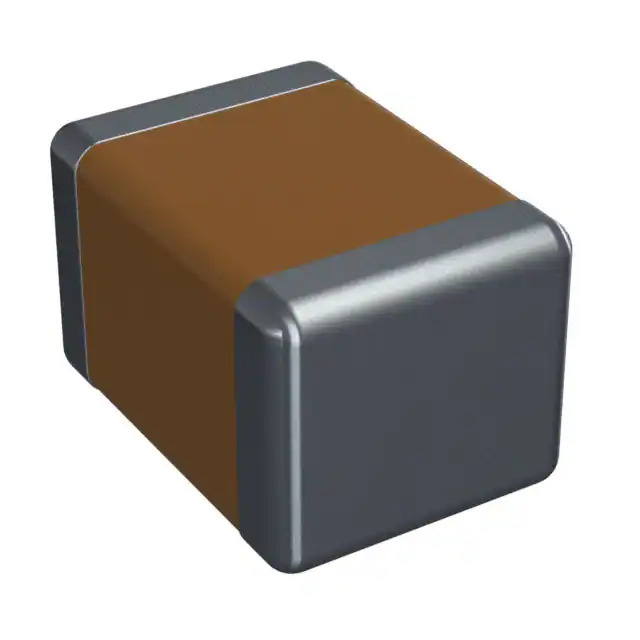

Same model may have multiple batches, images only for reference.
VG181238U770DP AVX Corp/Kyocera Corp
Same model may have multiple batches, images only for reference.

VG181238U770DP

Part No VG181238U770DP
Manufacturer AVX Corp/Kyocera Corp
Catalog TVS - Varistors, MOVs
Description VARISTOR 47V 800A 1812 / 47 V 800 A Varistor 1 Circuit Surface Mount, MLCV 1812 (4532 Metric)
Datasheet
VG181238U770DP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr KYOCERA AVX
Series TransGuard®
Package Tape & Reel
Product Status Active
Maximum AC Volts 30 V
Maximum DC Volts 38 V
Varistor Voltage (Min) 42.3 V
Varistor Voltage (Typ) 47 V
Varistor Voltage (Max) 51.7 V
Current - Surge 800 A
Energy 4.2J
Number of Circuits 1
Capacitance @ Frequency 1300 pF @ 1 kHz
Temperature Range - Operating -55°C ~ 125°C (TA)
Mounting Type Surface Mount, MLCV
Package / Case 1812 (4532 Metric)
Base Product Number VG1812
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1361019-VG181238U770DP
Ultra Librarian 3D Model Ultra Librarian VG181238U770DP CAD Model

Description

The KYOCERA AVX VG181238U770DP is a transient voltage suppressor (TVS) varistor with a capacitance of 1300 pF @ 1 kHz.

  • Series: TransGuard®
  • Capacitance: 1300 pF @ 1 kHz
  • Package: Tape and Reel
  • Mounting Type: Surface Mount
  • Package Size: 1812 (4532 Metric)
  • Maximum AC Voltage: 30V
  • Varistor Voltage: 42.3V to 51.7V
  • Surge Current Rating: 800A
  • Energy Rating: 4.2J
  • Operating Temperature: -55°C to 125°C
