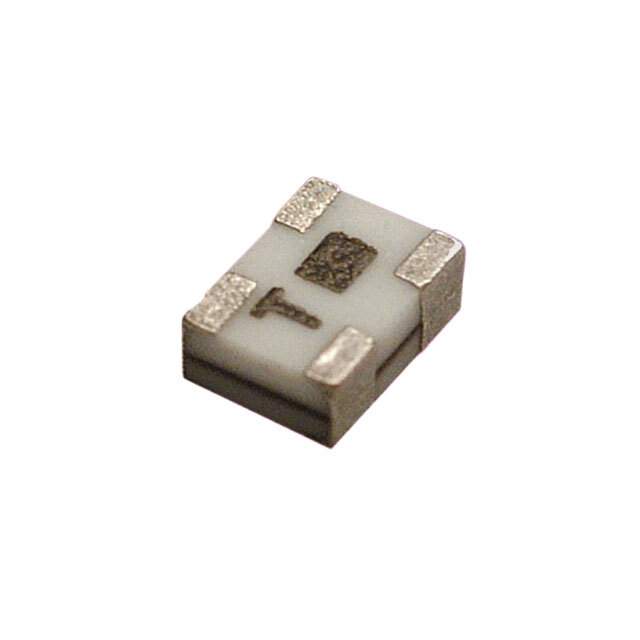

LP0805A1842ASTR Real Image
Same model may have multiple batches, images only for reference.

LP0805A1842ASTR

Part No LP0805A1842ASTR
Manufacturer AVX Corporation
Catalog RF Filters
Description Thin-Film Low Pass Filter | RF FILTER LOW PASS 1.843GHZ 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer AVX Corporation
Packaging Tape and Reel
Frequency 1.843GHz Center
Bandwidth 75MHz
Filter Type Low Pass
Insertion Loss 0.3dB
Mounting Style SMD
Manufacturer Package 0805 , 4 PC Pad
Parts Dimension 0.080" L x 0.061" W (2.03mm x 1.55mm)
Height (Maximum) 0.044" (1.12mm)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Win Source Part Number 1202719-LP0805A1842ASTR
Manufacturer Homepage www.avx.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LP0805A1842ASTR CAD Model

Description

The AVX Corporation LP0805A1842ASTR is a low pass filter that operates @ a frequency of 1.843GHz center. It has an insertion loss of 0.3dB and a bandwidth of 75MHz.

  • Frequency: 1.843GHz center
  • Insertion Loss: 0.3dB
  • Bandwidth: 75MHz
  • Packaging: Tape and Reel
  • Mounting Style: SMD
  • Height: 0.044" (1.12mm)
  • Package: 0805, 4 PC pad
  • Category: Filters
  • ECCN: EAR99
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 1 (Unlimited)
  • Dimensions: 0.080" L x 0.061" W (2.03mm x 1.55mm)
  • Manufacturer Homepage: www.avx.com
