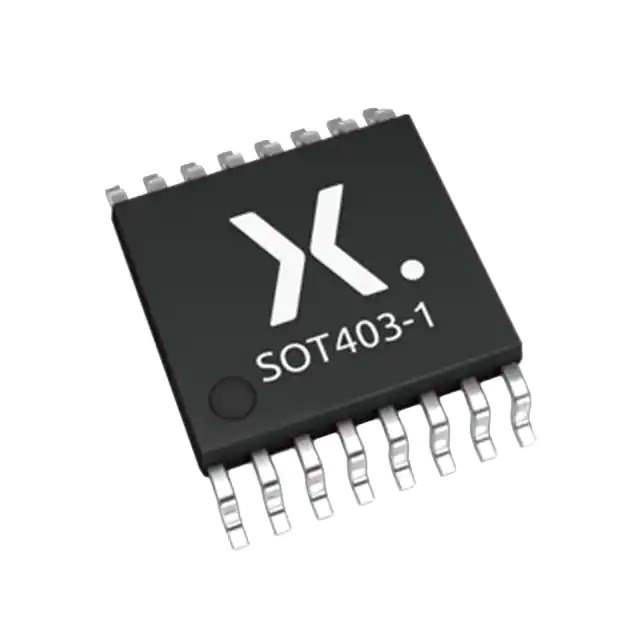

74HC109PWJ Real Image
Same model may have multiple batches, images only for reference.

74HC109PWJ

Part No 74HC109PWJ
Manufacturer Nexperia USA Inc.
Catalog Logic - Flip Flops
Description IC FF JK-TYPE DUAL 1BIT 16TSSOP
Datasheet
74HC109PWJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Flip Flops
Mfr Nexperia USA Inc.
Series 74HC
Package Tape & Reel
Product Status Active
Function Set(Preset) and Reset
Type JK Type
Output Type Complementary
Number of Elements 2
Number of Bits per Element 1
Clock Frequency 81 MHz
Max Propagation Delay @ V, Max CL 31ns @ 6V, 50pF
Trigger Type Positive Edge
Current - Output High, Low 5.2mA, 5.2mA
Voltage - Supply 2V ~ 6V
Current - Quiescent (Iq) 4 µA
Input Capacitance 3.5 pF
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Supplier Device Package 16-TSSOP
Package / Case 16-TSSOP (0.173", 4.40mm Width)
Standard Package 2,500 pcs
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1040285-74HC109PWJ
Ultra Librarian 3D Model Ultra Librarian 74HC109PWJ CAD Model

Description

The 74HC109PWJ is a JK Type Flip Flop integrated circuit (IC) from the 74HC series.

  • Package: 16-TSSOP
  • Mounting: surface mount
  • Maximum Clock Frequency: 81 MHz
  • Operating Temperature: -40°C to 125°C
  • Function: set (preset) and reset
  • Elements: two
  • Bit Per Element: one
  • Output Type: complementary
  • Current Output (High): 5.2mA
  • Current Output (Low): 5.2mA
  • Voltage Supply: 2V to 6V
  • Input Capacitance: 3.5 pF
  • Maximum Propagation Delay: 31ns @ 6V and 50pF
