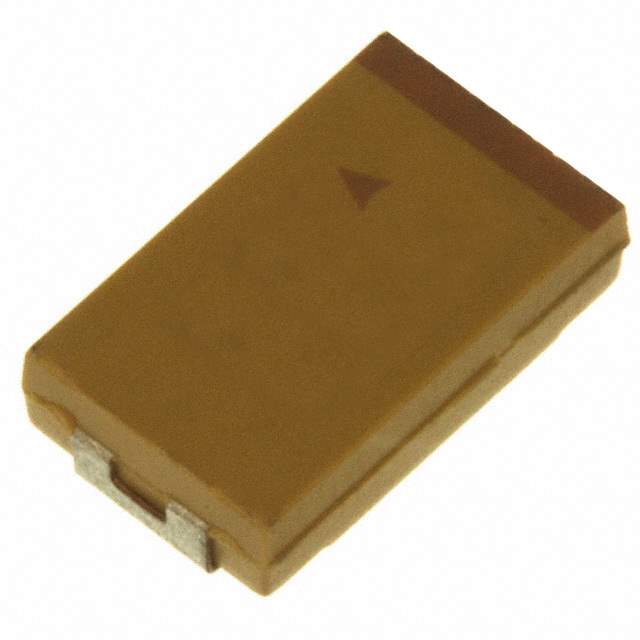

TPSW226K016R0500 Real Image
Same model may have multiple batches, images only for reference.

TPSW226K016R0500

Part No TPSW226K016R0500
Manufacturer AVX Corporation
Catalog Tantalum Capacitors
Description TPS Series Low ESR
Datasheet
TPSW226K016R0500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Series TPS
Packaging Reel - TR
Capacitance 22μF
Tolerance ±10%
Voltage Rating DC 16V
Type Molded
ESR (Equivalent Series Resistance) 500 mOhm
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package 2312
Size 0.236" L x 0.126" W (6.00mm x 3.20mm)
Height - Seated (Maximum) 0.059" (1.50mm)
Manufacturer Size Code W
Features General
Win Source Part Number 1273813-TPSW226K016R0500
Manufacturer Homepage www.avx.com
Popularity Medium
Supply and Demand Status Limited
Family Name TPS
Introduction Date May 05, 2009
ECCN EAR99
Country of Origin Czech Republic
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian TPSW226K016R0500 CAD Model

Description

The AVX Corporation TPS series capacitor is a molded type capacitor with a capacitance of 22μF and a tolerance of ±10%.

  • ESR: 500 mOhm
  • Voltage Rating DC: 16V
  • Manufacturer Size Code: W
  • Size: 0.236" L x 0.126" W (6.00mm x 3.20mm)
  • Application: General Purpose
  • Temperature Range: -55°C to 125°C
  • Halogen-Free Compliant: Yes
  • Popularity: Medium
  • Supply and Demand Status: Limited
