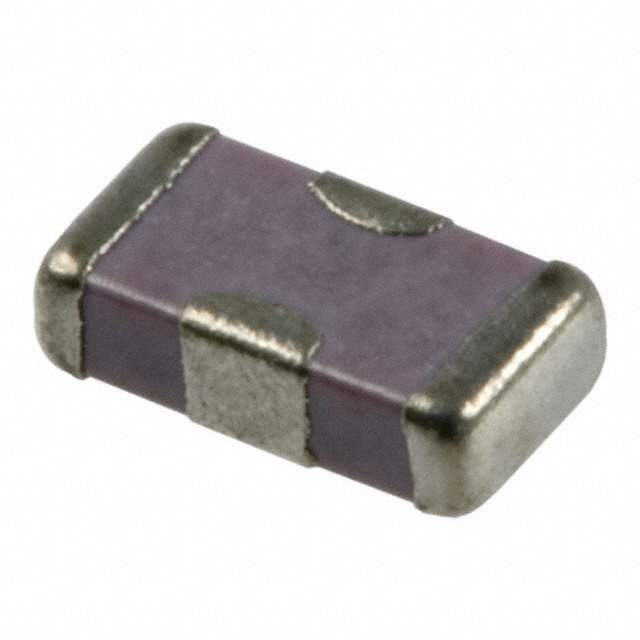

W3F15C2228AT1A Real Image
Same model may have multiple batches, images only for reference.

W3F15C2228AT1A

Part No W3F15C2228AT1A
Manufacturer AVX Corporation
Catalog Feed Through Capacitors
Description Cap Feed Through 0.0022uF 50VDC X7R -20% to 50% Flat 1206 125°C / CAP FEEDTHRU 2200PF 50V 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer AVX Corporation
Packaging Reel - TR
Status Active
Capacitance 2200pF
Tolerance -20%, +50%
Voltage Rating 50V
Current 300mA
DC Resistance (DCR) (Max) 600 mOhm
Temperature Range - Operating -55°C to 125°C
Temperature Coefficient X7R
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height (Max) 0.050" (1.27mm)
Win Source Part Number 051702-W3F15C2228AT1A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name W3F
Introduction Date June 16, 1999
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian W3F15C2228AT1A CAD Model

Description

The 051702-W3F15C2228AT1A is a capacitor from AVX Corporation with a voltage rating of 50V and capacitance of 2200pF.

  • Tolerance: -20%, +50%
  • Temperature Coefficient: X7R
  • Mounting: SMD (SMT) mountable
  • Maximum Height: 0.050" (1.27mm)
  • DC Resistance (DCR) (Max): 600 mOhm
  • Current: 300mA
  • Family: part of the W3F family
  • Ratings: has AEC-Q200 ratings
  • Temperature Range: -55°C to 125°C
  • Alternative Parts: W3F15C 222 84T3A, W3F15C 222 8AT1F, W3F15C 222 8AT3A, and W3F15C2228AT2A.
