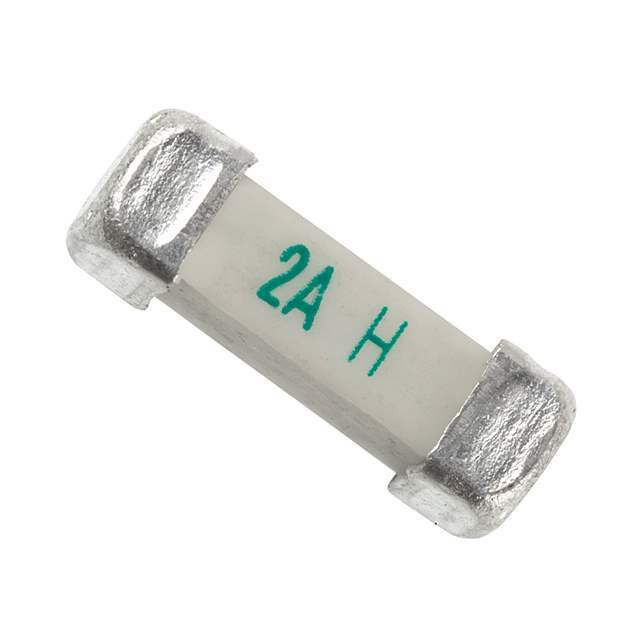

Same model may have multiple batches, images only for reference.
0678H9400-02 Bel Fuse Inc.
Same model may have multiple batches, images only for reference.

0678H9400-02

Part No 0678H9400-02
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE BRD MT 40A 250VAC 125VDC
Datasheet
0678H9400-02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection >Fuses
Manufacturer Bel Fuse Inc.
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 40 A
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Package / Case 2-SMD, Square End Block
Ultra Librarian 3D Model Ultra Librarian 0678H9400-02 CAD Model

Description

  • Enhanced – Breaking capacity
  • Surface mount high current fuse
  • Current rating from 500mA to 40A
  • Wide operating temperature range from -55℃ to 125℃
  • Tape & Reel for auto-insert SMD process
  • Compatible with 260℃, IR Pb-free solder process
  • RoHS compliant with exemption 7(a) Full compliance with EU Directive 2011/65/EU and amending directive 2015/863 - Halogen Free, (MSL=1)
  • AEC-Q Compliant
  • Meets Bel automotive qualification
  • Largely based on internal AEC-Q test plan
