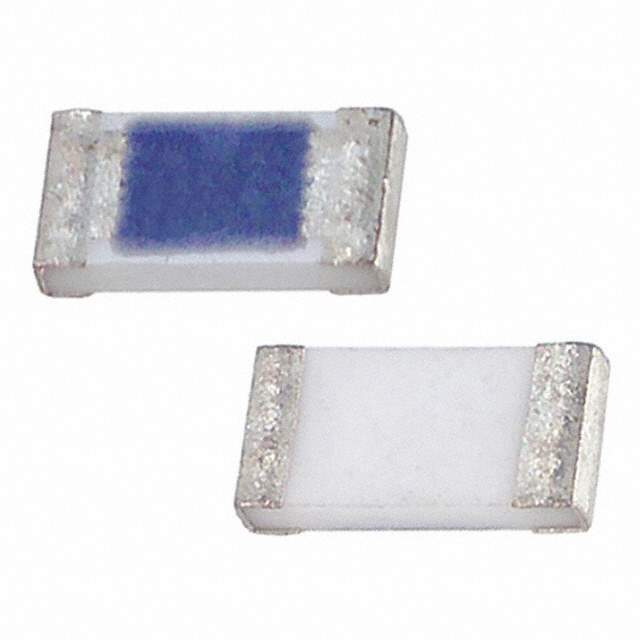

0685-1500-01

Part No 0685-1500-01
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE BOARD MNT 1.5A 125VAC 63VDC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bel Fuse Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 1.5A
Voltage Rating - AC 125V
Voltage Rating - DC 63V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 100A AC, 50A DC
Nominal Melting - I2t 0.084
Approvals CSA, cULus
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.07 Ohm
Win Source Part Number 197153-0685-1500-01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0685-1500-01 CAD Model

Description

Description

Precision and performance define the 0685-1500-01, an electronic component crafted for high-demand applications. Its innovative design and quality materials ensure long-lasting service even in challenging environments.

Applications

  • Medical instrumentation and equipment
  • Renewable energy systems
  • Advanced robotics
  • High-performance computing devices

Features and Benefits

  • Exceptional reliability with high resistance to wear
  • Accurate performance under variable conditions
  • Compact and versatile to fit diverse applications
  • Energy-efficient, helping reduce operational costs

Additional Details

Suitable for precise electronic applications, the 0685-1500-01 is a key player in innovative technology sectors, known for enhancing system efficiency and reliability.
