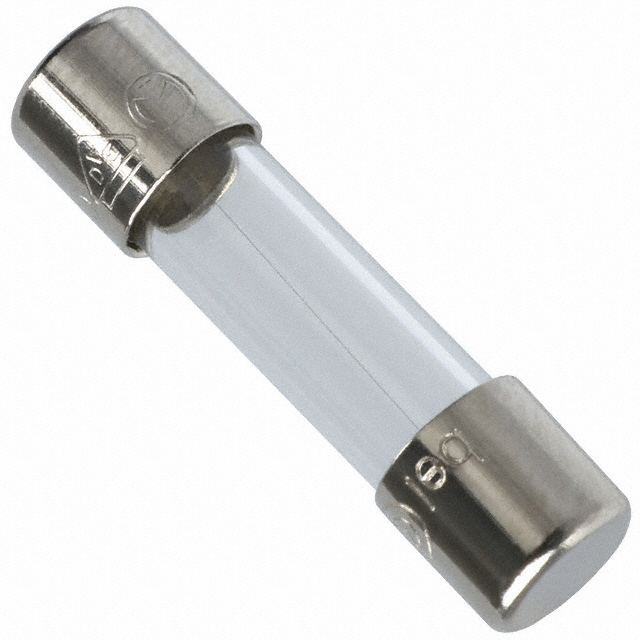

Same model may have multiple batches, images only for reference.
5SF 10-R Bel Fuse Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

5SF 10-R

Part No 5SF 10-R
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE GLASS 10A 250VAC 5X20MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit ProtectionFuses
Mfr Bel Fuse Inc.
Series 5SF
Packaging Bulk
Part Status Obsolete
Mounting Type Requires Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 10 A
Voltage Rating - AC 250 V
Response Time Fast Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 100A
Melting I2t 163.0
Approval Agency CE, CSA, cURus
Operating Temperature -55°C ~ 125°C
Size / Dimension 0.201" Dia x 0.787" L (5.10mm x 20.00mm)
DC Cold Resistance 0.006 Ohms
Ultra Librarian 3D Model Ultra Librarian 5SF 10-R CAD Model
