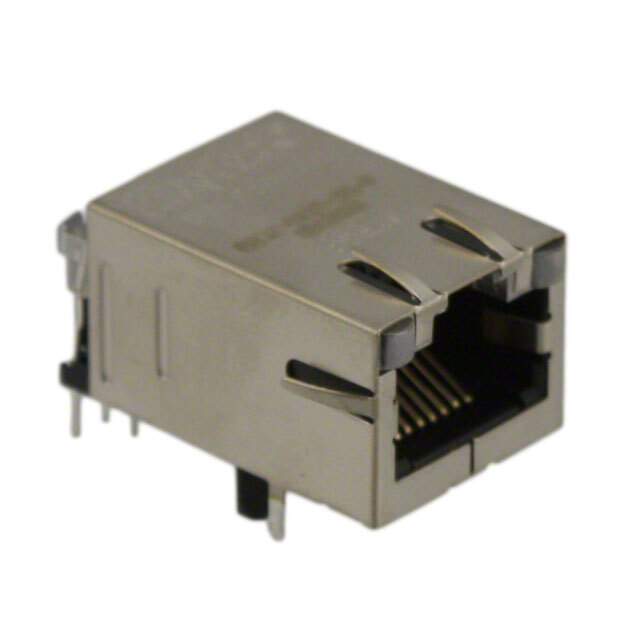

08B0-1X1T-36-F Real Image
Same model may have multiple batches, images only for reference.

08B0-1X1T-36-F

Part No 08B0-1X1T-36-F
Manufacturer Bel Fuse Inc.
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-T PCB / 1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
Datasheet
08B0-1X1T-36-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Bel Fuse Inc.
Packaging Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-T, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.531" (13.49mm)
LED Color Green, Orange - Yellow
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Copper Alloy
Contact Finish Gold
Temperature Range - Operating -40°C ~ 85°C
Contact Finish Thickness 15.0µin (0.38µm)
Shield Material Copper Alloy
Housing Material Polybutylene Terephthalate (PBT)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 08B01X1T36-F,507-1446,08B01X1T36F,Q9565680
Standard Package 60
Win Source Part Number 1333942-08B0-1X1T-36-F
Ultra Librarian 3D Model Ultra Librarian 08B0-1X1T-36-F CAD Model

Description

The Bel Fuse Inc. manufactured 1333942-08B0-1X1T-36-F is an RJ45 connector type, shielded, EMI finger electronic component.

  • Feature: Board Guide
  • Connector Type: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0μin (0.38μm)
  • Height Above Board: 0.531" (13.49mm)
  • Housing Material: Polybutylene Terephthalate (PBT)
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.240" L x 0.100" W x 0.100" H (6.10mm x 2.54mm x 2.54mm)
  • ECCN: EAR99
  • REACH: Unaffected
