Same model may have multiple batches, images only for reference.

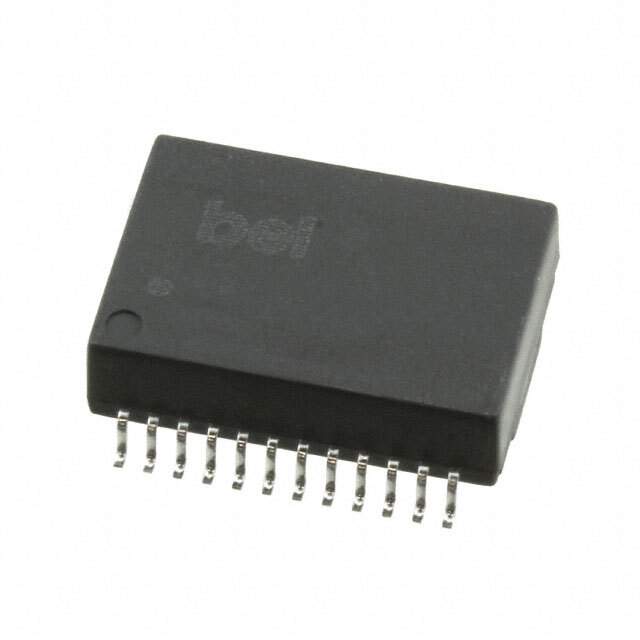

S558-5500-68 Real Image
Same model may have multiple batches, images only for reference.

S558-5500-68

Part No S558-5500-68
Manufacturer Bel Fuse Inc.
Catalog Pulse Transformers
Description XFRMR MODULE LAN 10/100BT SMD / 350µH LAN 10/100/1000 Base-T, Power over Ethernet (PoE) Pulse Transformer 1:1 Transmitter, 1:1 Receiver Surface Mount
Datasheet
S558-5500-68 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Bel Fuse Inc.
Package Tape & Reel
Transformer Type LAN 10/100/1000 Base-T, Power over Ethernet (PoE)
Inductance 350µH
Mounting SMD (SMT)
Dimension 0.690" L x 0.480" W (17.53mm x 12.20mm)
Height - Seated (Max) 0.230" (5.84mm)
Temperature Range - Operating -40°C ~ 85°C
Other Names Q10437812,S558-5500-68,507-1956-2,507-1956-1,507-1956-6
Standard Package 380
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1232780-S558-5500-68
Ultra Librarian 3D Model Ultra Librarian S558-5500-68 CAD Model

Description

The Bel Fuse Inc. electronic component is a pulse transformer with a LAN 10/100/1000 Base-T and Power over Ethernet (PoE) transformer type.

  • Height Seated: 0.230" (5.84mm)
  • Package: Tape & Reel
  • Inductance: 350µH
  • Standard Package: 380
  • Mounting: SMD (SMT)
  • Temperature Range: -40°C ~ 85°C
