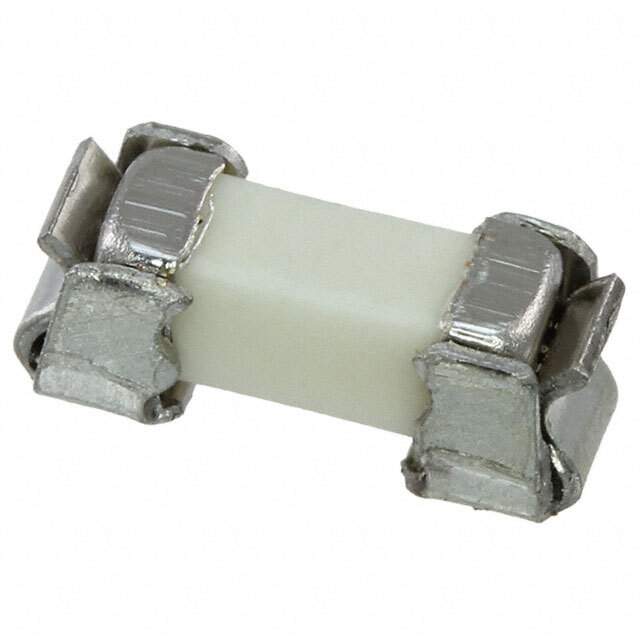

SSQC 630 Real Image
Same model may have multiple batches, images only for reference.

SSQC 630

Part No SSQC 630
Manufacturer Bel Fuse Inc.
Catalog Fuses
Datasheet
SSQC 630 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bel Fuse Inc.
Series SSQC
Package Tape & Reel (TR)
Product Status Obsolete
Mounting Type Holder, Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 630 mA
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case 2-SMD, Square End Block with Clip
Breaking Capacity @ Rated Voltage 50A AC, 300A DC
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.330" L x 0.128" W x 0.115" H (8.38mm x 3.25mm x 2.92mm)
Other Names SSQC 630,0679-0630-12,SSQC630
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302231-SSQC 630
Ultra Librarian 3D Model Ultra Librarian SSQC 630 CAD Model

Description

The Bel Fuse Inc. 1302231-SSQC 630 is a fast blow board mount fuse designed for circuit protection.

  • Voltage Rating: 125 V AC and DC
  • Breaking Capacity: 50A AC and 300A DC @ rated voltage
  • Fuse Type: cartridge style excluded
  • Packaging: tape and reel package
  • Standard Package: 500
  • Mounting Type: holder, surface mount
  • Package/Case: 2-SMD, square end block with clip
  • Operating Temperature Range: -55°C to 125°C
  • Dimensions: 0.330" L x 0.128" W x 0.115" H (8.38mm x 3.25mm x 2.92mm)
  • Status: obsolete
  • Approval Agency: no approval agency
