Same model may have multiple batches, images only for reference.

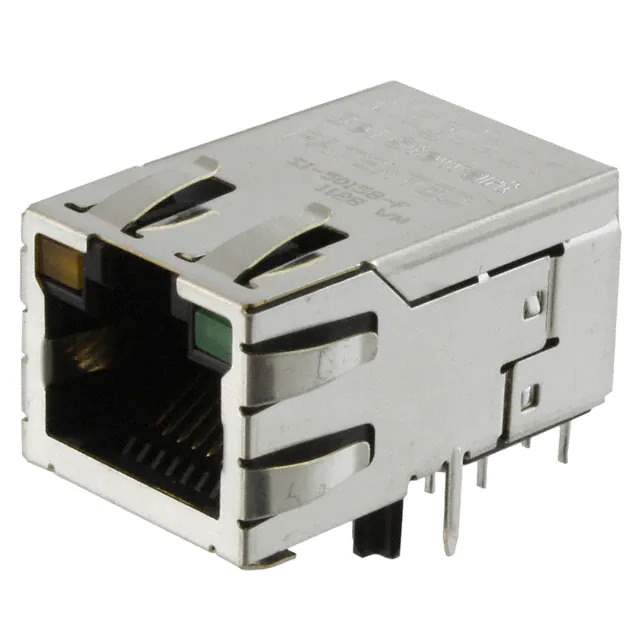

SI-50158-F Real Image
Same model may have multiple batches, images only for reference.

SI-50158-F

Part No SI-50158-F
Manufacturer Bel Fuse Inc.
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-T PCB / 1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
Datasheet
SI-50158-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr Bel Fuse Inc.
Series MagJack® ST SI-50000
Package Tray
Product Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.550" (13.97mm)
LED Color Yellow - Green
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Shield Material Copper Alloy
Housing Material Thermoplastic
Standard Package 50 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 666591-SI-50158-F
Ultra Librarian 3D Model Ultra Librarian SI-50158-F CAD Model

Description

The 567304 is a modular connector jack with magnetics from Bel Fuse Inc.

  • Category: Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
  • Product Status: Active
  • Board Guide: Yes
  • Type: RJ45
  • Row: Single
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 50.0µin (1.27µm)
  • Shielded: EMI finger
  • Housing Material: Thermoplastic
  • Suitable For: 10/100 Base-T and AutoMDIX applications
  • Orientation: 90° Angle (Right)
  • Ports: Single
  • Package: Tray
  • Standard Package: 50 pieces
  • LED Color: Yellow-green
  • Cores per Jack: 4
  • Tab Direction: Up
  • Mounting Type: Through Hole
  • REACH Status: Unaffected
  • HTSUS Code: 8536.69.4040
