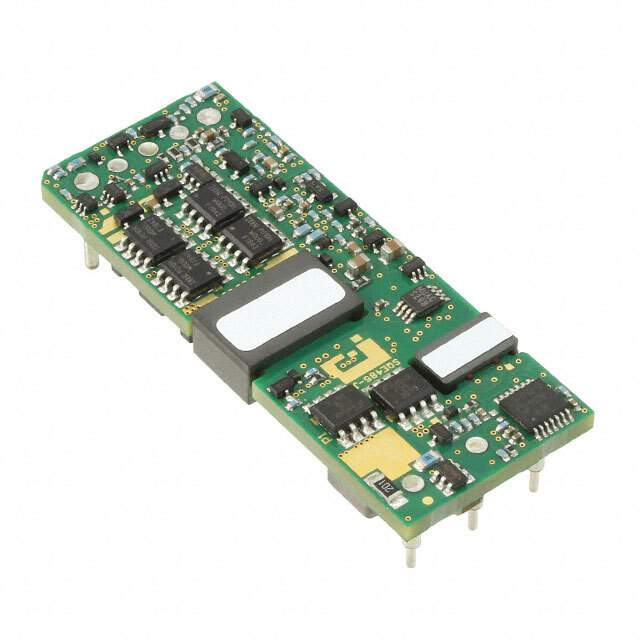

Same model may have multiple batches, images only for reference.

SQE48T20050-PGA0G

Get a Quote

Part No	SQE48T20050-PGA0G
Manufacturer	Bel Fuse Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 100W / Isolated Module DC DC Converter 1 Output 5V 20A 36V - 75V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Bel Fuse Inc.
Series	SQE48
Package	Tray
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	5V
Current - Output (Max)	20A
Power (Watts)	100 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	91%
Mounting Type	Through Hole
Package / Case	Eighth Brick
Dimension	2.30" L x 0.90" W x 0.41" H (58.4mm x 22.8mm x 10.3mm)
Supplier Device Package	Eighth Brick
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Standard Package	33
Win Source Part Number	1186657-SQE48T20050-PGA0G
Ultra Librarian 3D Model	Ultra Librarian SQE48T20050-PGA0G CAD Model

Alternative Products

Description

The Bel Fuse Inc. 1186657-SQE48T20050-PGA0G is an isolated module DC-DC converter that belongs to the SQE48 series.

Series: SQE48
Power: 100 W
Voltage Isolation: 2.25 kV
Current Output: 20A
Voltage Input: 36V to 75V
Package: Eighth Brick
Mounting: Through Hole
Features: Remote On/Off, OCP, OTP, OVP, and UVLO
Operating Temperature: -40°C to 85°C (with derating)
Dimension: 2.30" L x 0.90" W x 0.41" H (58.4mm x 22.8mm x 10.3mm)
ECCN: EAR99
Status: Obsolete
