Same model may have multiple batches, images only for reference.

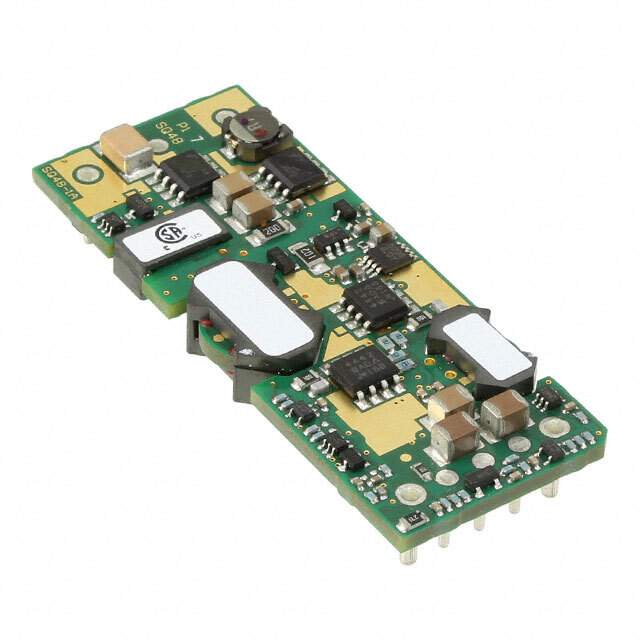

SQ48T15033-NBC0 Real Image
Same model may have multiple batches, images only for reference.

SQ48T15033-NBC0

Part No SQ48T15033-NBC0
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 50W / Isolated Module DC DC Converter 1 Output 3.3V 15A 36V - 75V Input
Datasheet
SQ48T15033-NBC0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Bel Power Solutions
Series SemiQ™ SQ48 (50W)
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 3.3V
Current - Output (Max) 15A
Power (Watts) 50 W
Voltage - Isolation 2 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 89.5%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/8 Brick
Dimension 2.30" L x 0.90" W x 0.26" H (58.4mm x 22.9mm x 6.6mm)
Control Features Enable, Active Low
Other Names -SQ48T15033-NBC0
Standard Package 33
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1237712-SQ48T15033-NBC0
Ultra Librarian 3D Model Ultra Librarian SQ48T15033-NBC0 CAD Model

Description

The Bel Power Solutions SemiQ SQ48 (50W) series is a set of isolated DC-DC converters designed for use in ITE (Commercial) applications.

  • Power Output: 50 W
  • Voltage Isolation: 2 kV
  • Current Output: 15A
  • Voltage Input Range: 36V to 75V
  • Voltage Output: 3.3V
  • Efficiency: 89.5%
  • Temperature Range: -40°C ~ 85°C
  • Packaging: Through-hole
  • Package Size: 8-DIP Module, 1/8 Brick
