Same model may have multiple batches, images only for reference.

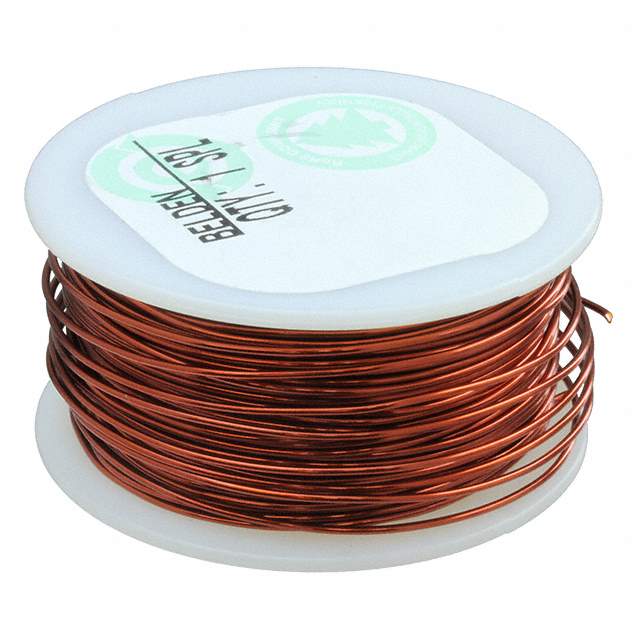

8076 Real Image
Same model may have multiple batches, images only for reference.

8076

Part No 8076
Manufacturer Belden Inc.
Catalog Magnetic Wire
Description MW-35C HY 20AWG
Datasheet
8076 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Magnetics - Transformer, Inductor Components - Magnetic Wire
Mfr Belden Inc.
Package Spool
Product Status Active
Wire Gauge 20 AWG
Conductor Material Copper, Annealed Bare
Jacket (Insulation) Material Polyamide
Jacket (Insulation) Diameter 0.035" (0.89mm)
Length - Approximate 315.0' (96m)
Ratings MW 35-C HY
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Win Source Part Number 858323-8076
Ultra Librarian 3D Model Ultra Librarian 8076 CAD Model

Description

The 858323-8076 magnetic wire is a high-quality component used in transformer and inductor applications.

  • Wire Gauge: 20 AWG
  • Package: Spool
  • Standard Package: 1 piece
  • Rating: MW 35-C HY
  • Conductor Material: Copper, Annealed Bare
  • Jacket (Insulation) Material: Polyamide
  • Jacket (Insulation) Diameter: 0.035" (0.89mm)
  • ECCN: EAR99
  • REACH: Unaffected
