Same model may have multiple batches, images only for reference.

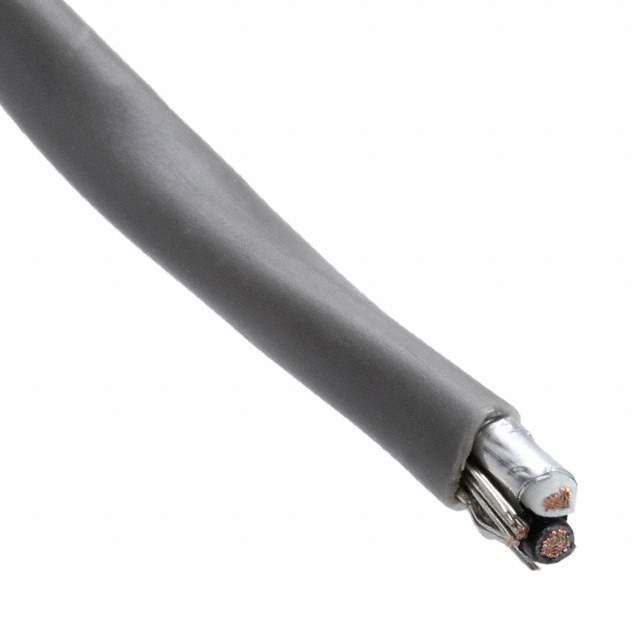

8760MN 008100 Real Image
Same model may have multiple batches, images only for reference.

8760MN 008100

Part No 8760MN 008100
Manufacturer Belden Inc.
Catalog Multiple Conductor Cables
Description CABLE 2COND 18AWG GRAY 100'
Datasheet
8760MN 008100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cables, Wires
Manufacturer Belden Inc.
Status Active
Cable Type Multi-Conductor
Number of Conductors 2 (1 Pair Twisted)
Wire Gauge 18 AWG
Conductor Strand 41/34
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.169" (4.29mm)
Shield Type Foil
Length 100.0' (30.5m)
Jacket Color Gray
Features Drain Wire
Temperature Range - Operating -20°C to 80°C
Usage Audio, Control, Instrumentation
Jacket (Insulation) Thickness 0.016" (0.41mm)
Conductor Insulation Polypropylene (PP)
Shield Material Aluminum
Shield Coverage 100%
Win Source Part Number 1035997-8760MN 008100
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 8760MN 008100 CAD Model

Description

The Belden Inc. 8760MN 008100 is a multi-conductor cable that is used for audio, control, and instrumentation.

  • Manufacturer: Belden Inc.
  • Model: 8760MN 008100
  • Application: audio, control, and instrumentation
  • Popularity: medium
  • Feature: drain wire
  • Wire Gauge: 18 AWG
  • Shield Coverage: 100%
  • Cable Type: multi-conductor
  • Voltage: unspecified
