8761 060500

Part No 8761 060500
Manufacturer Belden Inc.
Catalog Multiple Conductor Cables

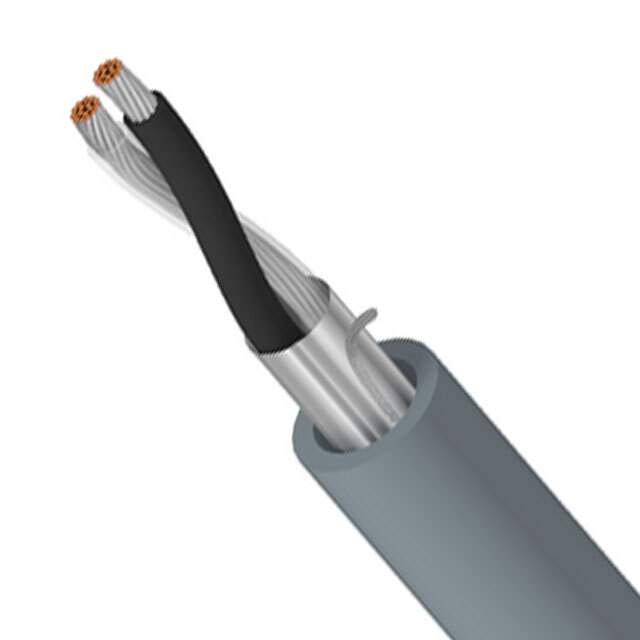

Description CABLE 2COND 22AWG CHROME 500'
Datasheet
8761 060500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cables, Wires
Manufacturer Belden Inc.
Status Active
Cable Type Multi-Conductor
Number of Conductors 2 (1 Pair Twisted)
Wire Gauge 22 AWG
Conductor Strand 7/30
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.175" (4.45mm)
Shield Type Foil
Length 500.0' (152.4m)
Jacket Color Chrome
Features Drain Wire
Temperature Range - Operating -20°C to 60°C
Jacket (Insulation) Thickness 0.025" (0.63mm)
Conductor Insulation Polyethylene (PE)
Shield Material Aluminum
Shield Coverage 100%
Win Source Part Number 1035998-8761 060500
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Communications & Networking, Automation & Process Control, Metering, Security, Industrial, Computers & Computer Peripherals, Sensing & Instrumentation, Audio
Ultra Librarian 3D Model Ultra Librarian 8761 060500 CAD Model

Description

The Belden Inc. 8761 060500 is a multi-conductor cable that is designed to be used in various applications.

  • Manufacturer: Belden Inc.
  • Product Name: 8761 060500
  • Length: 500.0' (152.4m)
  • Wire Gauge: 22 AWG
  • Conductors: Two conductors with one pair twisted
  • Shield Coverage: 100%
