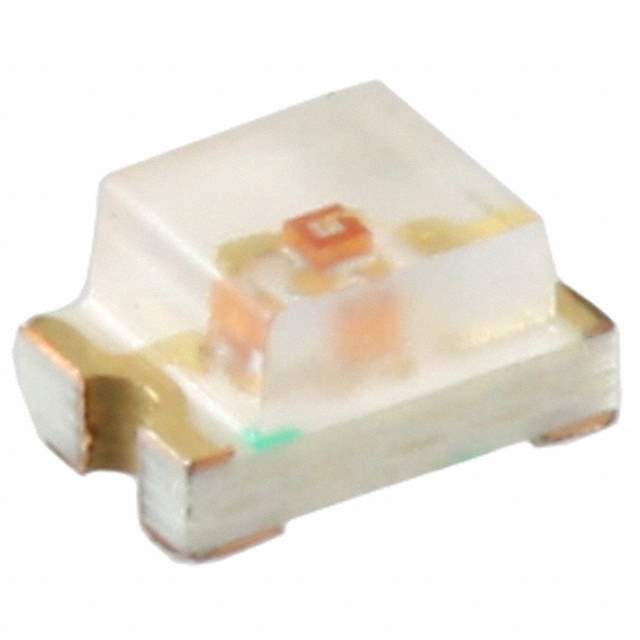

SM0805RC Real Image
Same model may have multiple batches, images only for reference.

SM0805RC

Part No SM0805RC
Manufacturer Bivar Inc.
Catalog LED Indication - Discrete
Description LED RED CLEAR 0805 SMD / Red 645nm LED Indication - Discrete 2V 0805 (2012 Metric)
Datasheet
SM0805RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Bivar Inc.
Package Tape & Reel (TR)
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 0.9mcd
Lens Style Rectangle with Flat Top
Lens Size 1.40mm x 1.20mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 130°
Mounting SMD (SMT)
Wavelength - Dominant 645nm
Wavelength - Peak 700nm
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 2.00mm L x 1.20mm W
Height (Max) 1.10mm
Base Product Number SM0805
Standard Package 3,000
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242253-SM0805RC
Ultra Librarian 3D Model Ultra Librarian SM0805RC CAD Model

Description

The SM0805RC is a red LED indication discrete product designed by Bivar Inc.

  • Viewing Angle: 130°
  • Lens Style: Rectangle with flat top
  • Lens Size: 1.40mm x 1.20mm
  • Package/Case: 0805 (2012 Metric)
  • Supplier Device Package: 0805
  • Millicandela Rating: 0.9mcd
  • Voltage Forward (Vf) (Typ): 2V
  • Wavelength-Dominant: 645nm
  • Wavelength-Peak: 700nm
  • Height (Max): 1.10mm
  • Configuration: Standard
  • Lens Transparency: Colorless
  • MSL Level: 4 (72 Hours)
  • HTSUS: 8541.41.0000
