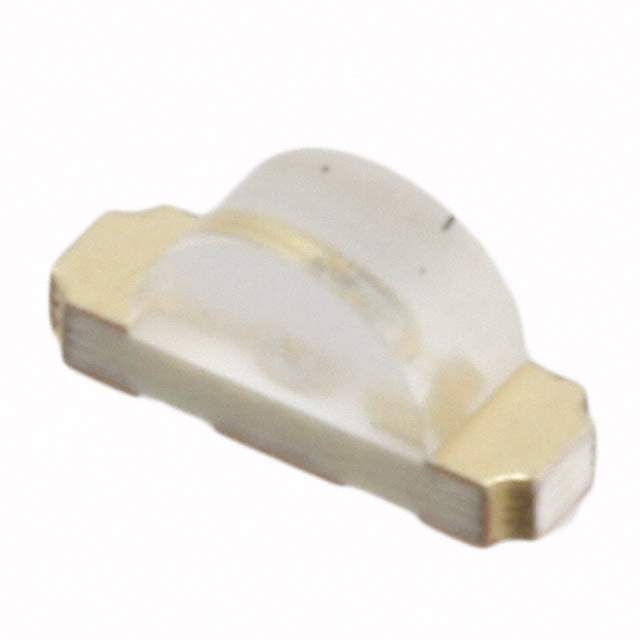

SM1204SPGC Real Image
Same model may have multiple batches, images only for reference.

SM1204SPGC

Part No SM1204SPGC
Manufacturer Bivar Inc.
Catalog LED Indication - Discrete
Description LED GREEN CLEAR 1204 R/A SMD  /  Green 525nm LED Indication - Discrete 3.3V 1204 (3210 Metric)
Datasheet
SM1204SPGC Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Bivar Inc.
Package Tape & Reel
Product Status Obsolete
Color Green
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 285mcd
Lens Style Rectangle with Domed Top
Lens Size 2.00mm x 1.00mm
Voltage - Forward (Vf) (Typ) 3.3V
Current - Test 20mA
Viewing Angle 110°
Mounting Type Surface Mount, Right Angle
Wavelength - Dominant 525nm
Wavelength - Peak 523nm
Package / Case 1204 (3210 Metric)
Supplier Device Package 1204
Dimension 3.20mm L x 1.00mm W
Height (Max) 1.00mm
Other Names 492-1235-1,492-1235-2,492-1235-6
Standard Package 3,000
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242284-SM1204SPGC
Ultra Librarian 3D Model Ultra Librarian SM1204SPGC CAD Model

Description

The 1242284-SM1204SPGC LED indication-discrete from Bivar Inc. is a green color LED.

  • Packaging: Tape and Reel
  • Standard Package: 3,000
  • Viewing Angle: 110 degrees
  • Lens Color: Colorless
  • Millicandela Rating: 285mcd
  • Voltage-Forward (Vf) (Typ): 3.3V
  • Current Test: 20mA
  • Wavelength-Dominant: 525nm
  • Wavelength-Peak: 523nm
  • Height: 1.00mm
  • Package/Case: 1204 (3210 Metric)
  • Lens Style: Rectangle with a domed top
  • Lens Size: 2.00mm x 1.00mm
  • Product Status: Obsolete
  • ECCN: EAR99
