Same model may have multiple batches, images only for reference.

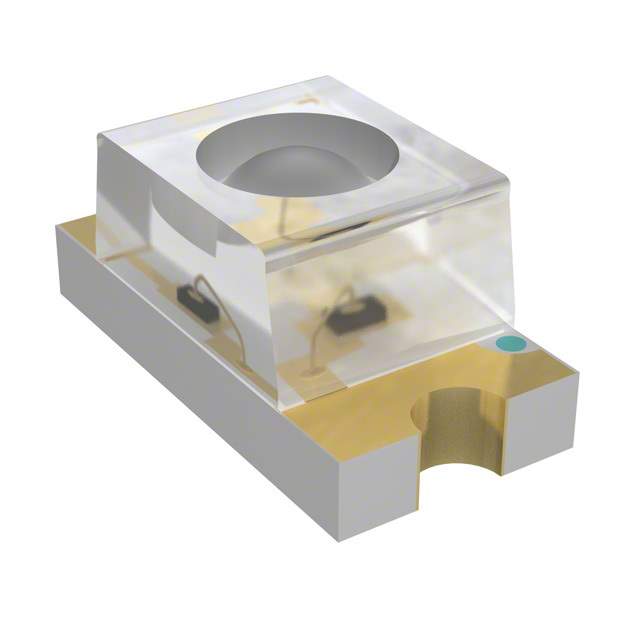

SM1206UV-395-IL Real Image
Same model may have multiple batches, images only for reference.

SM1206UV-395-IL

Part No SM1206UV-395-IL
Manufacturer Bivar Inc.
Catalog Infrared, UV, Visible Emitters
Description EMITTER UV 398NM 25MA 1206  /  Ultraviolet (UV) Emitter 395nm ~ 400nm 3.4V 25mA 30° 1206 (3216 Metric)
Datasheet
SM1206UV-395-IL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr Bivar Inc.
Package Tape & Reel
Type Ultraviolet (UV)
Current - DC Forward (If) (Max) 25mA
Wavelength 395nm ~ 400nm
Voltage - Forward (Vf) (Typ) 3.4V
Viewing Angle 30°
Orientation Top View
Temperature Range - Operating -30°C ~ 80°C (TA)
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric)
Base Product Number SM1206
Other Names 492-1534-2,492-1534-1,492-1534-6,SM1206UV395IL,SM1206UV-395-IL
Standard Package 3,000
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242394-SM1206UV-395-IL
Ultra Librarian 3D Model Ultra Librarian SM1206UV-395-IL CAD Model

Description

The Bivar Inc. SM1206UV-395-IL is an ultraviolet (UV) LED emitter that has a wavelength of 395nm to 400nm.

  • Wavelength: 395nm to 400nm
  • Viewing Angle: 30 degrees
  • Voltage-Forward: 3.4V
  • Standard Package: 3,000
  • Package: Tape and reel
  • Current Rating: 25mA
  • Operating Temperature Range: -30°C to 80°C
