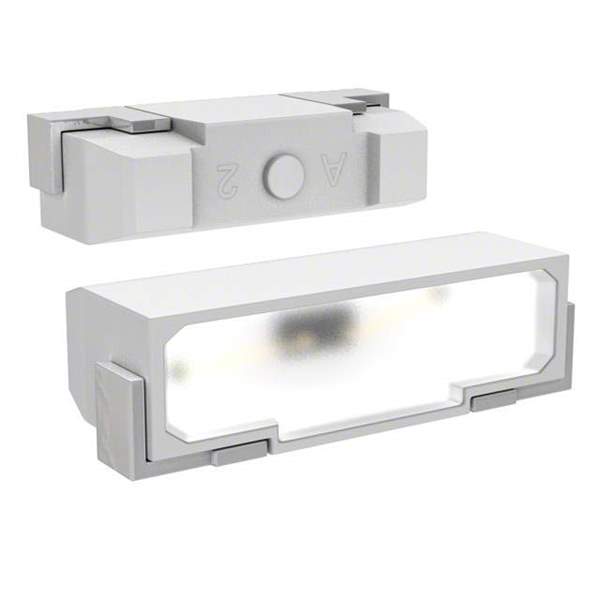

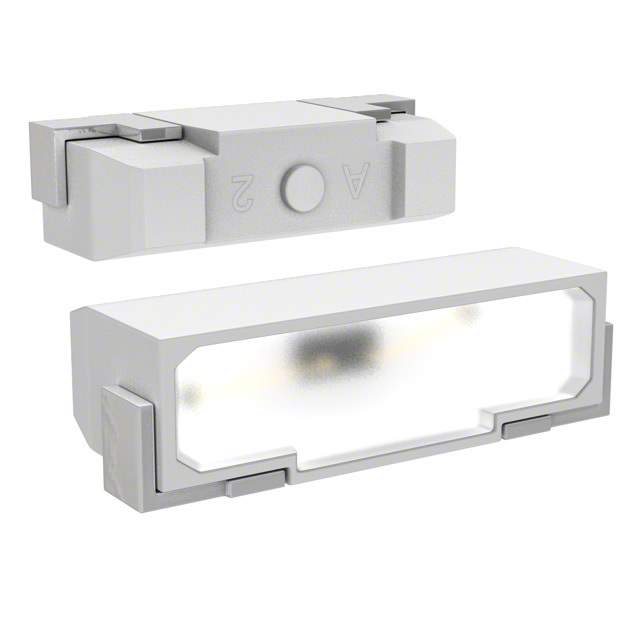

Same model may have multiple batches, images only for reference.

SMS1105UWDW

Name: SMS1105UWDW
Brand: Bivar Inc.
SKU: 1242307
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMS1105UWDW
Manufacturer	Bivar Inc.
Catalog	LED Indication - Discrete
Description	LED WARM WHT DIFF 2PLCC SMD R/A / White, Warm LED Indication - Discrete 3.2V 2-SMD, J-Lead
Datasheet	SMS1105UWDW Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Indication - Discrete
Mfr	Bivar Inc.
Package	Tape & Reel
Color	White, Warm
Configuration	Standard
Lens Transparency	Diffused
Millicandela Rating	1750mcd
Lens Style	Rectangle with Flat Top
Lens Size	2.50mm x 0.80mm
Voltage - Forward (Vf) (Typ)	3.2V
Current - Test	20mA
Viewing Angle	120°
Mounting Type	Surface Mount, Right Angle
Package / Case	2-SMD, J-Lead
Supplier Device Package	2-PLCC
Dimension	2.80mm L x 1.20mm W
Height (Max)	0.80mm
Base Product Number	SMS1105
Other Names	492-1281-6,492-1281-2,492-1281-1
Standard Package	3,000
MSL Level	4 (72 Hours)
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	1242307-SMS1105UWDW
Ultra Librarian 3D Model	Ultra Librarian SMS1105UWDW CAD Model

Alternative Products

Description

The SMS1105UWDW LED Indication - Discrete is a high-quality optoelectronics component from Bivar Inc.

Colors: White and Warm
Lens Transparency: Diffused
Package: Tape and Reel
Standard Package: 3,000
Viewing Angle: 120 degrees
Millicandela Rating: 1750mcd
Voltage-Forward (Vf) (Typ): 3.2V
Current-Test: 20mA
Height (Max): 0.80mm
Mounting Type: Surface mount, right angle
Package/Case: 2-SMD, J-Lead
Supplier Device Package: 2-PLCC
Dimension: 2.80mm L x 1.20mm W
Lens Style: Rectangle with flat top
