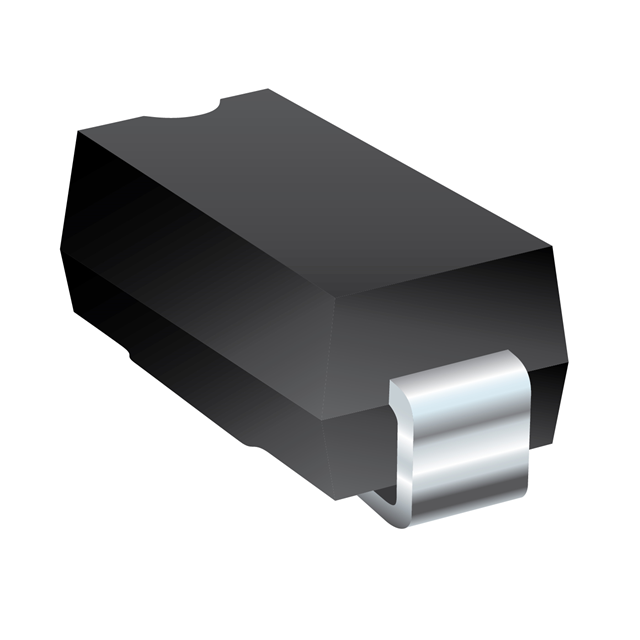

1.5SMBJ13A-H

Name: 1.5SMBJ13A-H
Brand: Bourns Inc.
SKU: 1034036
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	1.5SMBJ13A-H
Manufacturer	Bourns Inc.
Catalog	TVS - Diodes
Description	DIO TVS VRWM 13V 1500W UNIDIR SM / 21.5V Clamp 69.8A Ipp Tvs Diode Surface Mount SMB (DO-214AA)
Datasheet	1.5SMBJ13A-H Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Bourns Inc.
Series	Automotive, AEC-Q101, 1.5SMBJ
Package	Tape & Reel (TR)
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	13V
Voltage - Breakdown (Min)	14.4V
Voltage - Clamping (Max) @ Ipp	21.5V
Current - Peak Pulse (10/1000µs)	69.8A
Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Applications	General Purpose
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Package / Case	DO-214AA, SMB
Supplier Device Package	SMB (DO-214AA)
Base Product Number	1.5SMBJ
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	118-1.5SMBJ13A-HTR
Standard Package	500
Win Source Part Number	1034036-1.5SMBJ13A-H
Ultra Librarian 3D Model	Ultra Librarian 1.5SMBJ13A-H CAD Model

Alternative Products

Description

The 1034036-1.5SMBJ13A-H is a Zener type TVS diode designed for general-purpose circuit protection.

Package: DO-214AA (SMB)
Mount: surface mount
Channels: unidirectional
Reverse Standoff Voltage: 13V
Breakdown Voltage: 14.4V
Peak Pulse Power: 1500W (1.5kW)
Peak Pulse Current: 69.8A (10/1000μs)
Maximum Clamping Voltage @ Peak Pulse Current: 21.5V
Power Line Protection: No
Capacitance @ Frequency: N/A
Operating Temperature: -55°C to 150°C (TJ)
REACH: unaffected
ECCN: EAR99
