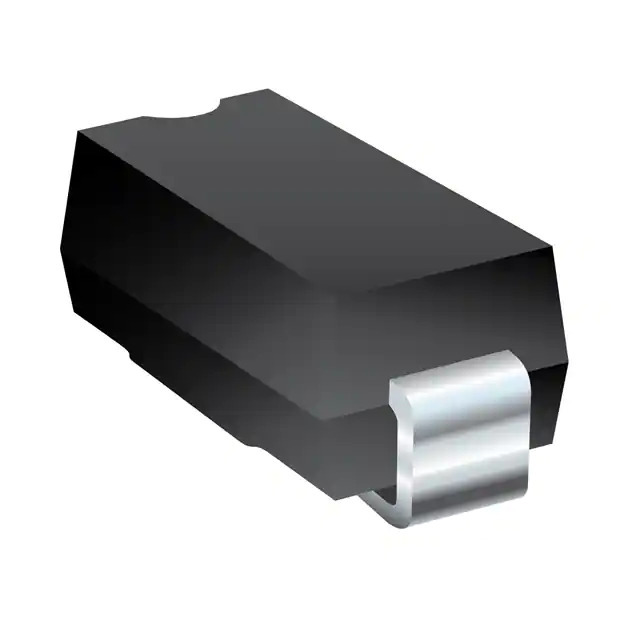

Same model may have multiple batches, images only for reference.

1.5SMBJ15CA

Name: 1.5SMBJ15CA
Brand: Bourns Inc.
SKU: 1362216
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1.5SMBJ15CA
Manufacturer	Bourns Inc.
Catalog	TVS - Diodes
Description	DIO TVS VRWM 15V 1500W BIDIR SMB / 24.4V Clamp 61.5A Ipp Tvs Diode Surface Mount SMB (DO-214AA)
Datasheet	1.5SMBJ15CA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Bourns Inc.
Series	Automotive, AEC-Q101, 1.5SMBJ
Package	Tape & Reel
Product Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	15V
Voltage - Breakdown (Min)	16.7V
Voltage - Clamping (Max) @ Ipp	24.4V
Current - Peak Pulse (10/1000µs)	61.5A
Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	SMB (DO-214AA)
Base Product Number	1.5SMBJ
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1362216-1.5SMBJ15CA
Ultra Librarian 3D Model	Ultra Librarian 1.5SMBJ15CA CAD Model

Alternative Products

Description

The 1362216-1.5SMBJ15CA is a Zener type TVS diode manufactured by Bourns Inc.

Series: 1.5SMBJ
Application: General Purpose
Channel Type: Bidirectional
Reverse Standoff Voltage: 15V
Breakdown Voltage (Min): 16.7V
Clamping Voltage: 24.4V @ Peak Pulse Current of 61.5A
Power Rating: 1500W
Power Line Protection: Effective
Package: SMB
Mounting Type: Surface Mount
Operating Temperature Range: -55°C to 150°C
REACH Status: Affected
ECCN: EAR99
Packaging: Tape and Reel
