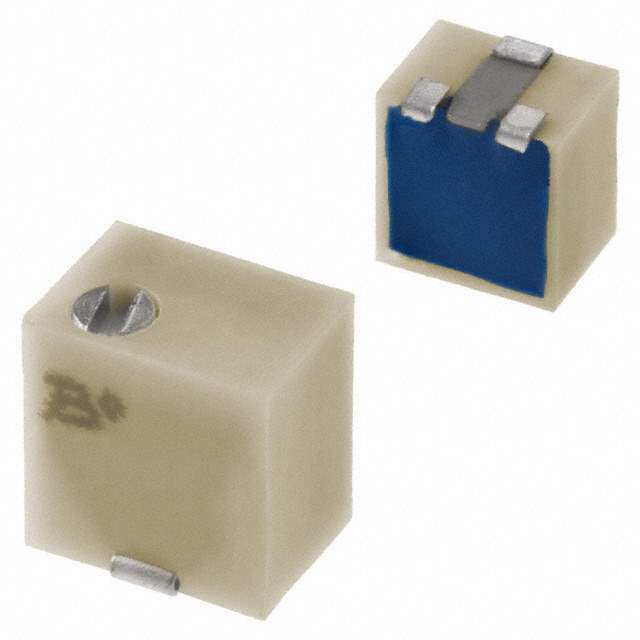

Same model may have multiple batches, images only for reference.

3214W-1-101E

Name: 3214W-1-101E
Brand: Bourns Inc.
SKU: 973179
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3214W-1-101E
Manufacturer	Bourns Inc.
Catalog	Potentiometers, Variable Resistors
Description	TRIMMER 100 OHM 0.25W J LEAD TOP / 100 Ohms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 5.0 Turn Top Adjustment
Datasheet	3214W-1-101E Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr	Bourns Inc.
Series	Trimpot® 3214 - Sealed
Package	Tape & Reel
Resistance	100 Ohms
Power (Watts)	0.25W, 1/4W
Tolerance	±10%
Temperature Coefficient	±100ppm/°C
Number of Turns	5
Adjustment Type	Top Adjustment
Resistive Material	Cermet
Mounting	SMD (SMT)
Termination Style	J Lead
Dimension	Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm)
Base Product Number	3214W
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8533.40.8050
Other Names	3214W-101ETR-NDR,3214W-101EDKR,3214W-101ETR,3214W1101E,3214W-101ECT,3214W-101ECT-NDR,3214W-101EDKR-NDR,3214W-1-101ECT
Standard Package	250
Win Source Part Number	973179-3214W-1-101E
Ultra Librarian 3D Model	Ultra Librarian 3214W-1-101E CAD Model

Alternative Products

Description

The Bourns Inc. Trimpot 3214 - Sealed is a series of potentiometers that provides superior performance and reliability.

Resistance: 100 ohms
Tolerance: ±10%
Resistive Material: cermet
Temperature Coefficient: ±100ppm/°C
Power Rating: 0.25W
Number of Turns: 5
Termination Style: J Lead
Face Dimension: 0.189" x 0.138"
