Same model may have multiple batches, images only for reference.

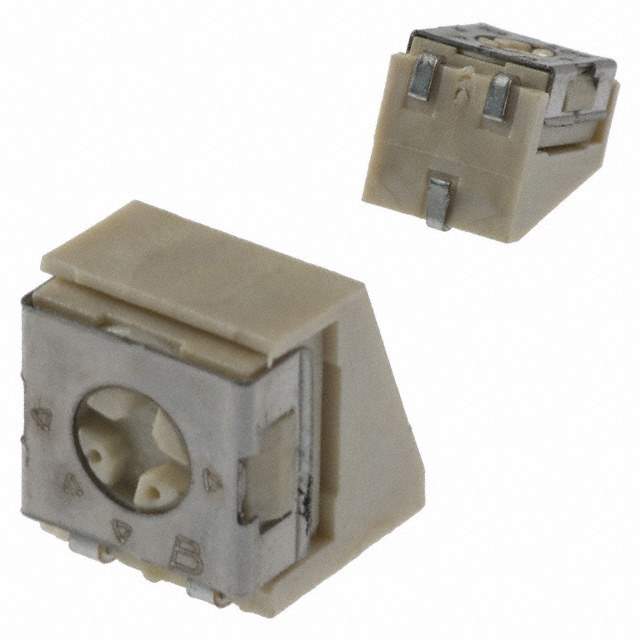

3314Z-1-103E Real Image
Same model may have multiple batches, images only for reference.

3314Z-1-103E

Part No 3314Z-1-103E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 10K OHM 0.25W SMD
Datasheet
3314Z-1-103E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot 3314 - Sealed
Packaging Reel package
Resistance (Ohms) 10k
Power (Watts) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting SMD
Termination Style J Lead
Dimension Square - 0.219" x 0.197" Face x 0.227" H (5.56mm x 5.01mm x 5.76mm)
Win Source Part Number 763275-3314Z-1-103E
Popularity Medium
Supply and Demand Status Limited
Family Name 3314
Introduction Date December 24, 2006
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 3314Z-1-103E CAD Model

Description

The Bourns Inc. Trimpot 3314 - Sealed series is a J lead termination style, SMD mounting potentiometer.

  • Tolerance: ±20%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.25W (1/4W)
  • Resistance: 10k ohms
  • Turns: 1
  • Resistive Material: Cermet
  • Packaging: Reel
  • Category: Potentiometers, Variable Resistors
  • Introduction Date: December 24, 2006
  • ECCN: EAR99
  • Estimated EOL Date: 2027
  • Supply and Demand Status: Limited
