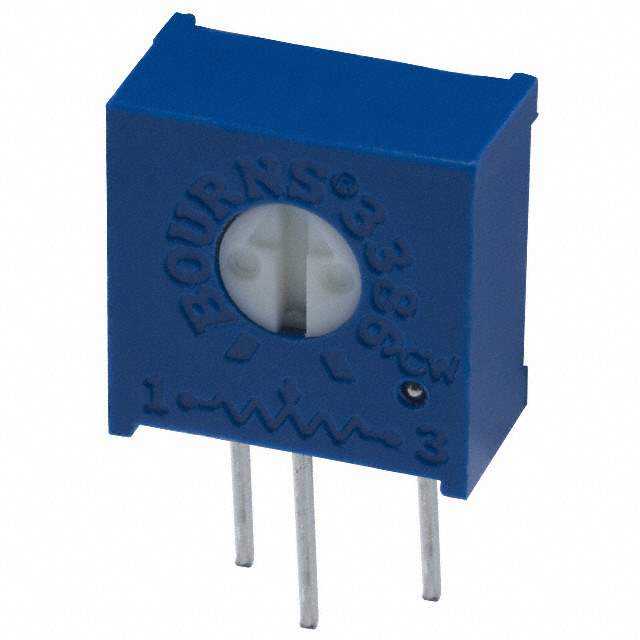

3386H-1-105LF Real Image
Same model may have multiple batches, images only for reference.

3386H-1-105LF

Part No 3386H-1-105LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 1M OHM 0.5W PC PIN SIDE / 1 MOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Side Adjustment
Datasheet
3386H-1-105LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Manufacturer Bourns Inc.
Packaging Tube
Resistance 1 mOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Through Hole
Termination Style PC Pins
Size / Dimension Square - 0.375" x 0.375" Face (9.53mm x 9.53mm)
Base Product Number 3386H
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
Other Part Number 3386H-105LF,3386H-1-105LF-ND,3386H1105LF
Standard Package 100
Win Source Part Number 1325949-3386H-1-105LF
Ultra Librarian 3D Model Ultra Librarian 3386H-1-105LF CAD Model

Description

The 3386H-1-105LF is a trimmer potentiometer from Bourns Inc.

  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Resistive Material: Cermet
  • Power: 0.5W
  • Number of Turns: 1
  • Adjustment Type: Side Adjustment
  • Resistance: 1 mOhms
  • Size/Dimension: Square - 0.375" x 0.375" Face (9.53mm x 9.53mm)
  • Mounting: Through Hole
  • Packaging: Tube
  • Standard Package: 100
  • ROHS3: Compliant
