Same model may have multiple batches, images only for reference.

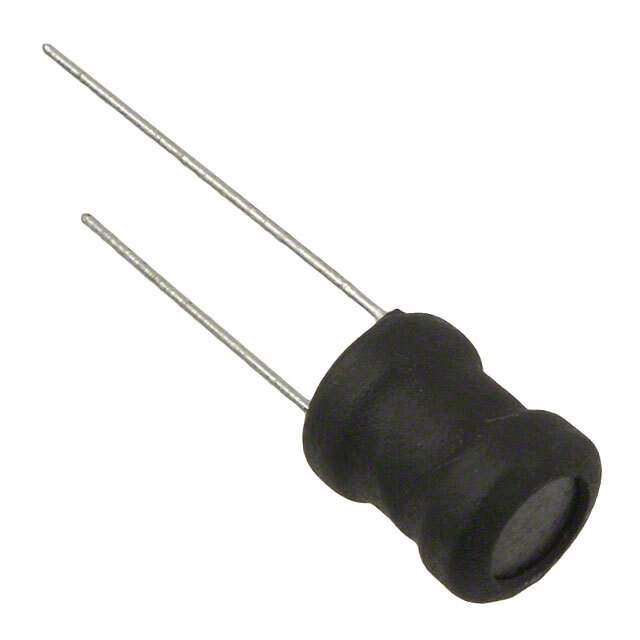

RLB0914-6R8ML Real Image
Same model may have multiple batches, images only for reference.

RLB0914-6R8ML

Part No RLB0914-6R8ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 6.8UH 3A 39 MOHM TH / 6.8 µH Unshielded Drum Core, Wirewound Inductor 3 A 39mOhm Max Radial, Vertical Cylinder
Datasheet
RLB0914-6R8ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Tray
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.8 µH
Tolerance ±20%
Current Rating (Amps) 3 A
Current - Saturation (Isat) 8.5A
Shielding Unshielded
DC Resistance (DCR) 39mOhm Max
Q @ Freq 20 @ 7.96MHz
Frequency - Self Resonant 30MHz
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 7.96 MHz
Mounting Through Hole
Case / Package Radial, Vertical Cylinder
Size / Dimension 0.343" Dia (8.70mm)
Height - Seated (Max) 0.512" (13.00mm)
Base Product Number RLB0914
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number -RLB0914-6R8ML,RLB09146R8ML
Standard Package 200
Win Source Part Number 1327784-RLB0914-6R8ML
Ultra Librarian 3D Model Ultra Librarian RLB0914-6R8ML CAD Model

Description

The Bourns Inc. fixed inductor is a drum core, wirewound type component with an unshielded shielding.

  • Size: 0.343" Dia (8.70mm)
  • Inductance: 6.8 µH
  • Seated Height: 0.512" (13.00mm)
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Q @ Freq: 20 @ 7.96MHz
  • Frequency Self-Resonant: 30MHz
  • DC Resistance (DCR): 39mOhm Max
  • Temperature Range: -40°C ~ 105°C
  • Current Rating: 3 A
  • Mounting: Through-Hole
  • Standard Package: 200
  • ECCN: EAR99
  • ROHS3 Compliant: Yes
  • Inductance Frequency Test: 7.96 MHz
