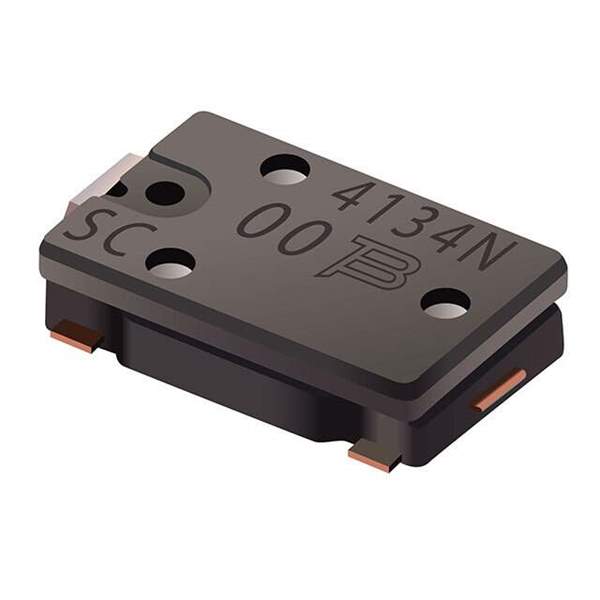

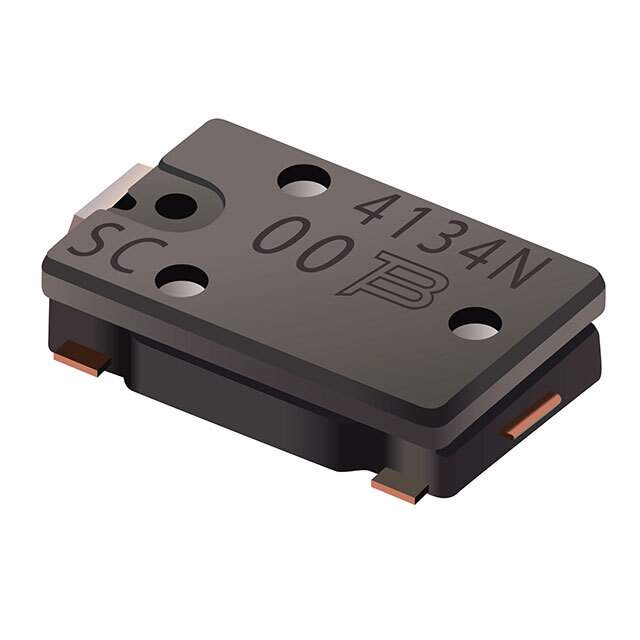

SC77AAA Real Image
Same model may have multiple batches, images only for reference.

SC77AAA

Part No SC77AAA
Manufacturer Bourns Inc.
Catalog Thermal Cutoffs, Cutouts (TCO)
Datasheet
SC77AAA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Thermal Cutoffs (Thermal Fuses and Breakers)
Mfr Bourns Inc.
Series SC
Package Tape & Reel
Type Breaker
Holding Temperature 25°C (77°F)
Rated Functioning Temperature 77°C (171°F)
Reset Temperature 40°C (104°F)
Voltage Rating - DC 28
Current Rating (Amps) 25 A
Approval Agency cUL, TUV, UL
Package / Case Nonstandard SMD
Base Product Number SC77A
Other Names SC77AAACT,SC77AAADKR,SC77AAATR
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Win Source Part Number 1301572-SC77AAA
Ultra Librarian 3D Model Ultra Librarian SC77AAA CAD Model

Description

The Bourns Inc. SC77AAA electronic component is a circuit protection thermal cutoff with a thermal fuse and breaker.

  • Series: SC
  • Package: Tape and Reel
  • Package/Case: Nonstandard SMD
  • Reset Temperature: 40 degrees Celsius
  • Holding Temperature: 25 degrees Celsius
  • Rated Functioning Temperature: 77 degrees Celsius
  • Maximum Temperature Limit: Not Specified
  • Current Rating: 25 A
  • Standard Package: 5,000
  • REACH: Unaffected
  • Approval Agency Certifications: cUL, TUV, and UL
