Same model may have multiple batches, images only for reference.

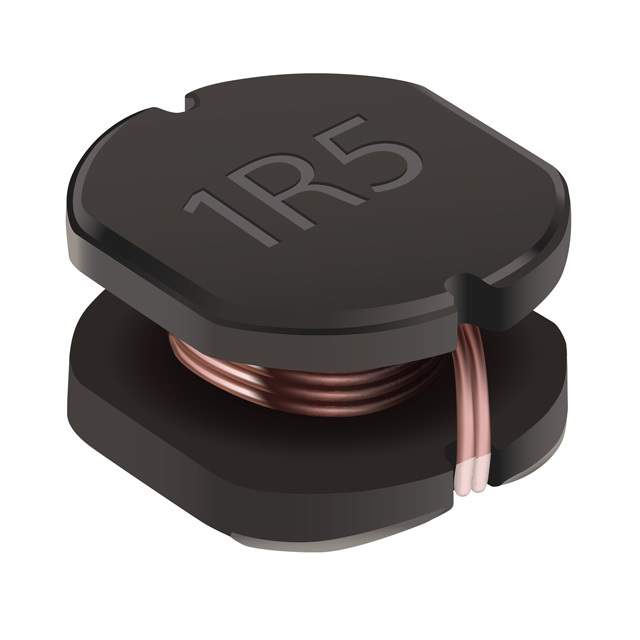

SDE1006A-1R5M Real Image
Same model may have multiple batches, images only for reference.

SDE1006A-1R5M

Part No SDE1006A-1R5M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDE1006A-1R5M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDE1006A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 7.2 A
Current - Saturation (Isat) 8A
Shielding Unshielded
DC Resistance (DCR) 18mOhm Max
Frequency - Self Resonant 69.6MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.354" W (10.00mm x 9.00mm)
Height - Seated (Max) 0.228" (5.80mm)
Base Product Number SDE1006A
Other Names SDE1006A-1R5MDKR,SDE1006A-1R5M,SDE1006A-1R5MCT,SDE1006A-1R5MTR
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274888-SDE1006A-1R5M
Ultra Librarian 3D Model Ultra Librarian SDE1006A-1R5M CAD Model

Description

The Bourns Inc. SDE1006A-1R5M is a fixed inductor that has an inductance of 1.5 µH and a tolerance of ±20%.

  • Series: SDE1006A
  • Package: Tape and reel
  • Type: Drum core, wirewound
  • Shielding: Unshielded
  • Height: 0.228" (5.80mm)
  • Standard Package: 800
  • DC Resistance: 18mOhm Max
  • AEC-Q200: Yes
  • Frequency Self-Resonant: 69.6MHz
