Same model may have multiple batches, images only for reference.

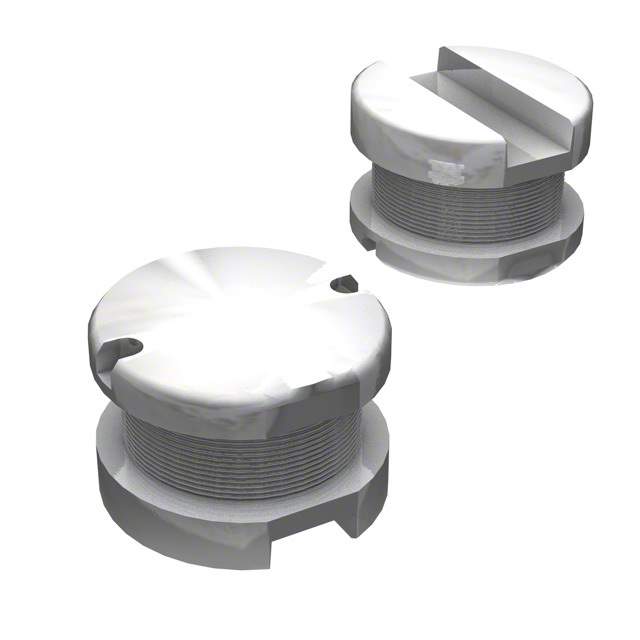

SDR0805-182KL Real Image
Same model may have multiple batches, images only for reference.

SDR0805-182KL

Part No SDR0805-182KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0805-182KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0805
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.8 mH
Tolerance ±10%
Current Rating (Amps) 140 mA
Current - Saturation (Isat) 230mA
Shielding Unshielded
DC Resistance (DCR) 9.2Ohm Max
Q @ Freq 30 @ 252kHz
Frequency - Self Resonant 2MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.307" L x 0.307" W (7.80mm x 7.80mm)
Height - Seated (Max) 0.209" (5.30mm)
Base Product Number SDR0805
Other Names SDR0805-182KL,SDR0805182KL,SDR0805-182KLCT,SDR0805-182KLDKR,SDR0805-182KLTR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274717-SDR0805-182KL
Ultra Librarian 3D Model Ultra Librarian SDR0805-182KL CAD Model

Description

The Bourns Inc. SDR0805-182KL is a drum core, wirewound inductor with an unshielded package.

  • Inductance: 1.8 mH
  • Current Rating: 140mA
  • Maximum DCR: 9
  • Supply and Demand Status: Limited
  • REACH: Not affected
