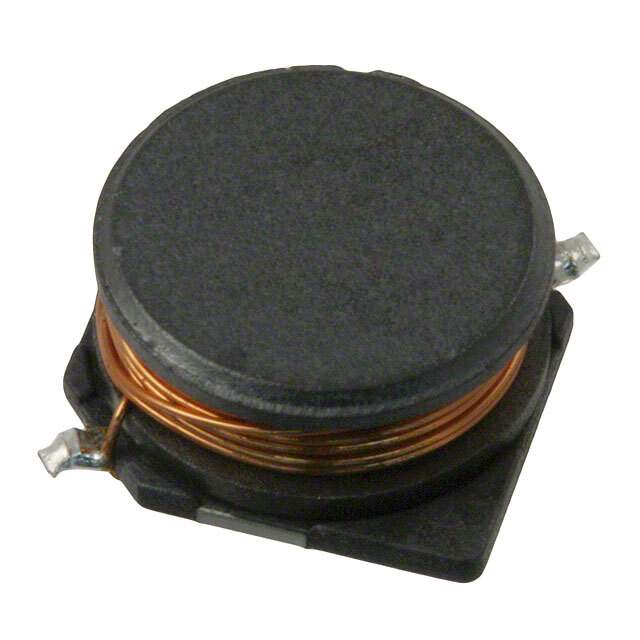

SDR1045-680M

Part No SDR1045-680M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1045
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 68 µH
Tolerance ±20%
Current Rating (Amps) 1.3 A
Current - Saturation (Isat) 1.5A
Shielding Unshielded
DC Resistance (DCR) 360mOhm Max
Q @ Freq 21 @ 2.52MHz
Frequency - Self Resonant 11.1MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SDR1045
Standard Package 700
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274614-SDR1045-680M
Ultra Librarian 3D Model Ultra Librarian SDR1045-680M CAD Model

Description

The Bourns Inc. SDR1045 series is a drum core, wirewound inductor that comes in a tape & reel package.

  • Shielding: Unshielded
  • Inductance: 68 µH
  • Tolerance: ±20%
  • Material: Ferrite
  • Q @ Freq: 21 @ 2.52MHz
  • DC Resistance (DCR): 360mOhm Max
  • Frequency Self-Resonant: 11.1MHz
  • Current Rating: 1.3 A
  • Dimension: 0.394" L x 0.394" W (10.00mm x 10.00mm)
  • Temperature Range: -40°C to 125°C
  • Applications: Power supplies, DC-DC converters, and filtering circuits
