Same model may have multiple batches, images only for reference.

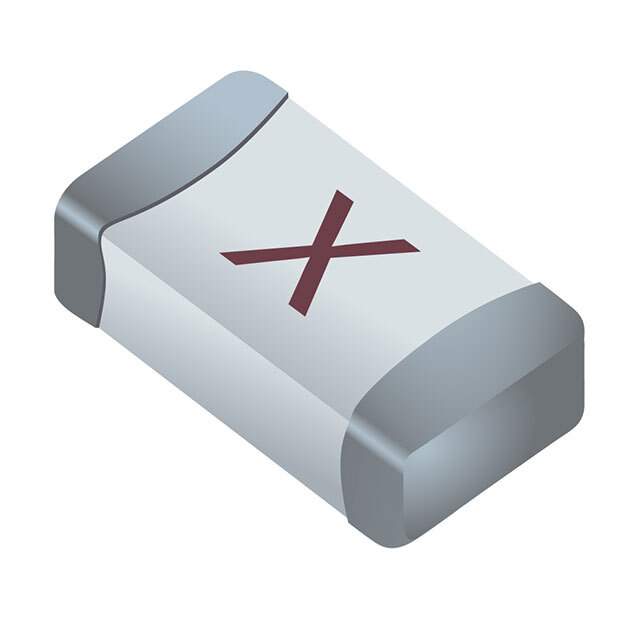

SF-1206HH12M-2 Real Image
Same model may have multiple batches, images only for reference.

SF-1206HH12M-2

Part No SF-1206HH12M-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-1206HH12M-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-1206HHxxM
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 12 A
Voltage Rating - DC 24 V
Response Time Slow Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 150A
Melting I2t 19
Approval Agency UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.126" L x 0.063" W x 0.038" H (3.20mm x 1.60mm x 0.97mm)
DC Cold Resistance 0.0039 Ohms
Base Product Number SF-1206
Other Names SF-1206HH12M-2DKR,SF-1206HH12M-2CT,SF-1206HH12M-2TR
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302083-SF-1206HH12M-2
Ultra Librarian 3D Model Ultra Librarian SF-1206HH12M-2 CAD Model

Description

The Bourns SinglFuse™ SF-1206HHxxM series is a slow-blow board mount fuse designed for circuit protection applications.

  • Voltage Rating: 24V DC
  • Breaking Capacity @ rated voltage: 150A
  • Response Time: Slow-blow
  • Melting I2t: 19
  • DC Cold Resistance: 0.0039 Ohms
  • Package: Tape and reel
  • Mounting Style: SMD (SMT)
  • Size: 1206 (3216 Metric)
  • Temperature Range: -55°C to 125°C
  • RoHS Compliant: Yes
  • UL Approval: Yes
