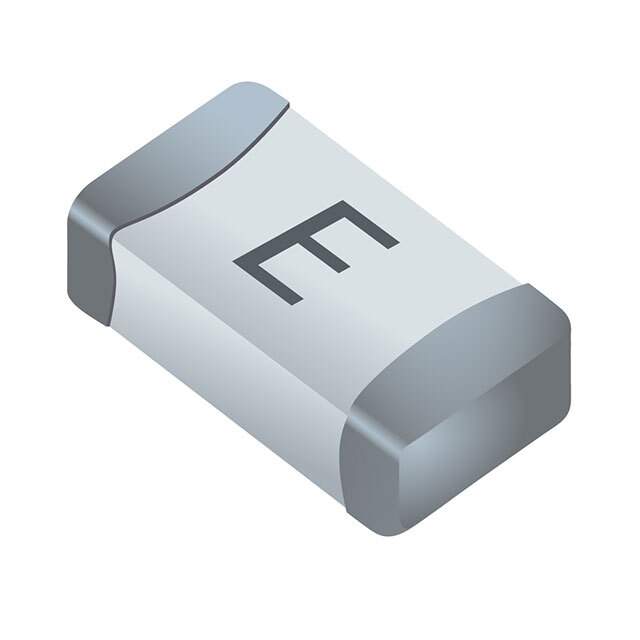

SF-1206HI800M-2 Real Image
Same model may have multiple batches, images only for reference.

SF-1206HI800M-2

Part No SF-1206HI800M-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-1206HI800M-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-1206HIxxxM
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 8 A
Voltage Rating - DC 24 V
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 80A
Melting I2t 60
Approval Agency UL
Temperature Range - Operating -55°C ~ 150°C
Dimension 0.126" L x 0.063" W x 0.038" H (3.20mm x 1.60mm x 0.97mm)
DC Cold Resistance 0.009 Ohms
Base Product Number SF-1206
Other Names SF-1206HI800M-2TR,SF-1206HI800M-2DKR,SF-1206HI800M-2CT
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302073-SF-1206HI800M-2
Ultra Librarian 3D Model Ultra Librarian SF-1206HI800M-2 CAD Model

Description

The SinglFuse™ SF-1206HIxxxM is a board mount fuse designed for circuit protection.

  • Voltage Rating: 24 V DC
  • Breaking Capacity: 80A
  • Standard Package: 3,000
  • Mounting: SMD (SMT)
  • Package/Case Size: 1206 (3216 Metric)
  • Temperature Range for Operating: -55°C ~ 150°C
  • Part Number: SF-1206HI800M-2TR
  • Manufacturer: Bourns Inc.
  • Approval Agency: UL
