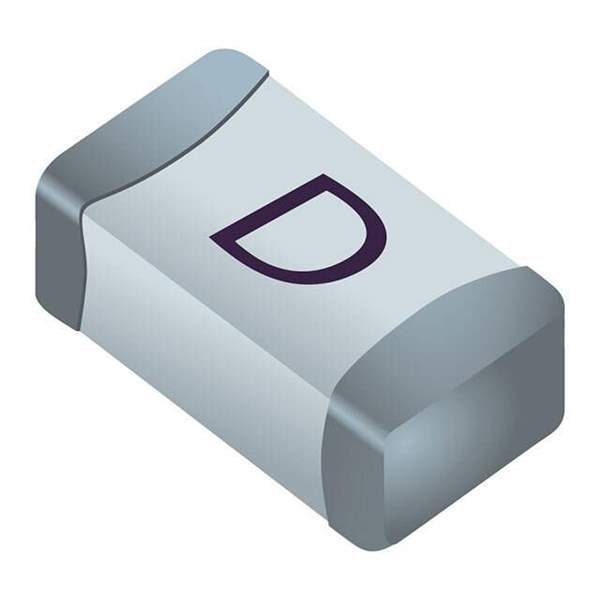

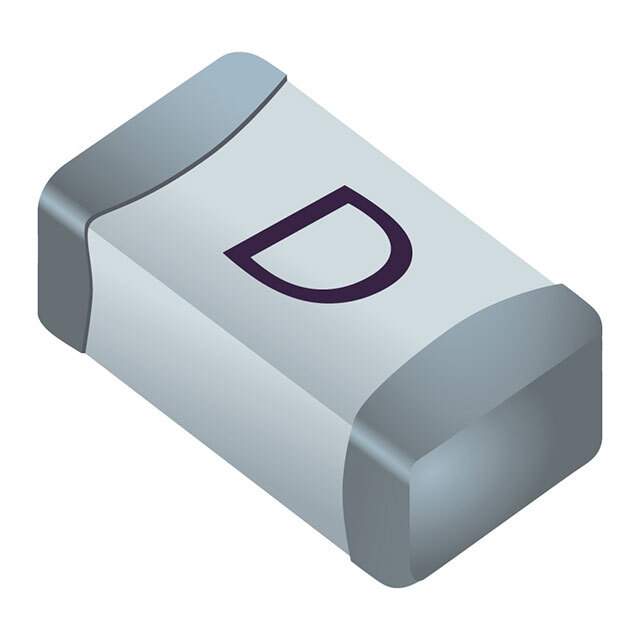

SF-1206S300M-2 Real Image
Same model may have multiple batches, images only for reference.

SF-1206S300M-2

Part No SF-1206S300M-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-1206S300M-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-1206SxxxM
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 3 A
Voltage Rating - DC 32 V
Response Time Slow Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.21
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.126" L x 0.063" W x 0.033" H (3.20mm x 1.60mm x 0.85mm)
DC Cold Resistance 0.031 Ohms
Base Product Number SF-1206
Other Names SF-1206S300M-2TR,SF-1206S300M-2DKR,SF-1206S300M-2CT
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302044-SF-1206S300M-2
Ultra Librarian 3D Model Ultra Librarian SF-1206S300M-2 CAD Model

Description

The SinglFuse™ SF-1206SxxxM series fuse is designed by Bourns Inc. The SF-1206S300M-2 has a current rating of 3 A and a voltage rating - DC of 32 V. The package / case is 1206 (3216 Metric) and the temperature range - operating is -55°C ~ 125°C.

  • Current Rating: 3 A
  • Voltage Rating - DC: 32 V
  • Package / Case: 1206 (3216 Metric)
  • Temperature Range - Operating: -55°C ~ 125°C
  • Dimensions: 0.126" L x 0.063" W x 0.033" H (3.20mm x 1.60mm x 0.85mm)
  • Breaking Capacity @ rated voltage: 50A
  • DC Cold Resistance: 0.031 Ohms
  • Application: Fuses
