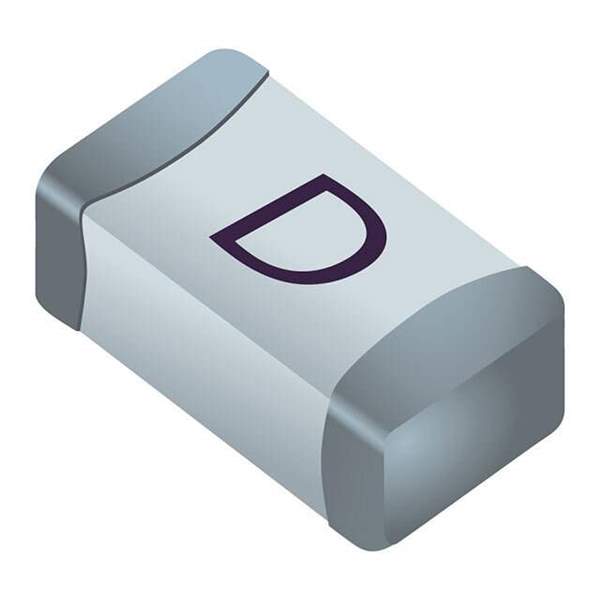

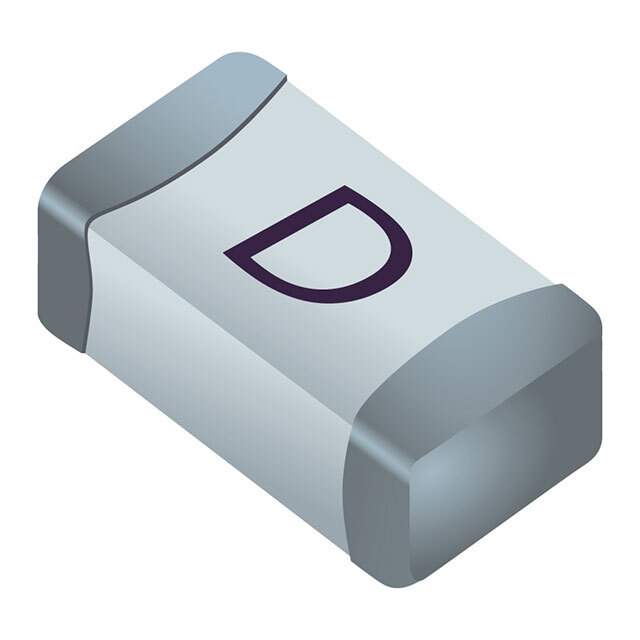

SF-1206S400M-2 Real Image
Same model may have multiple batches, images only for reference.

SF-1206S400M-2

Part No SF-1206S400M-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-1206S400M-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-1206SxxxM
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 4 A
Voltage Rating - DC 32 V
Response Time Slow Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 45A
Melting I2t 0.35
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.126" L x 0.063" W x 0.033" H (3.20mm x 1.60mm x 0.85mm)
DC Cold Resistance 0.022 Ohms
Base Product Number SF-1206
Other Names SF-1206S400M-2TR,SF-1206S400M-2DKR,SF-1206S400M-2CT
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302043-SF-1206S400M-2
Ultra Librarian 3D Model Ultra Librarian SF-1206S400M-2 CAD Model

Description

The SinglFuse™ SF-1206SxxxM series is a slow blow board mount fuse designed for circuit protection. The 1302043-SF-1206S400M-2 is a member of this series and comes in a 1206 (3216 Metric) surface mount package.

  • Package: 1206 (3216 Metric) surface mount package
  • Voltage Rating: 32V
  • Breaking Capacity: 45A @ rated voltage
  • Response Time: Slow blow
  • Melting I2t: 0.35
  • DC Cold Resistance: 0.022 Ohms
  • Current Rating: 4A
  • Tolerance: ±10%
  • Temperature Range: -55°C to 125°C
  • Packaging: Tape and reel
  • Standard Package: 3,000
  • REACH: Unaffected
  • ECCN: EAR99
