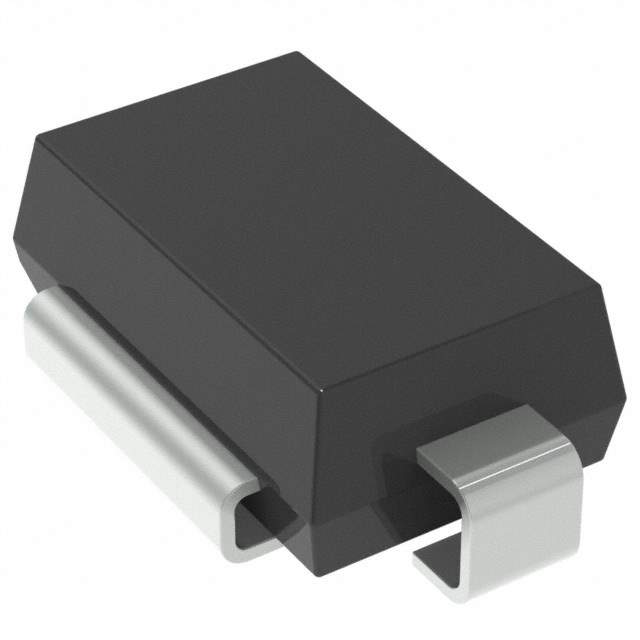

SM8S22CA-Q

Part No SM8S22CA-Q
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Bourns Inc.
Series Automotive, AEC-Q101, SM8SF-Q
Package Tape & Reel (TR)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 22V
Voltage - Breakdown (Min) 24.4V
Voltage - Clamping (Max) @ Ipp 35.5V
Current - Peak Pulse (10/1000µs) 186A
Power - Peak Pulse 6600W (6.6kW)
Power Line Protection No
Applications Automotive
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Package / Case DO-218AB
Supplier Device Package DO-218
Base Product Number SM8S2
Standard Package 750
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1301552-SM8S22CA-Q
Ultra Librarian 3D Model Ultra Librarian SM8S22CA-Q CAD Model

Description

The Bourns Inc. SM8S22CA-Q is a Zener type, bidirectional channel electronic component that is ideal for automotive applications.

  • Manufacturer: Bourns Inc.
  • Type: Zener
  • Channel: Bidirectional
  • Application: Automotive
  • Series: SM8SF-Q
  • Compliance: AEC-Q101 compliant
  • Voltage Breakdown: 24.4V
  • Clamping Voltage @ Ipp: 35.5V
  • Peak Pulse Power: 6600W
