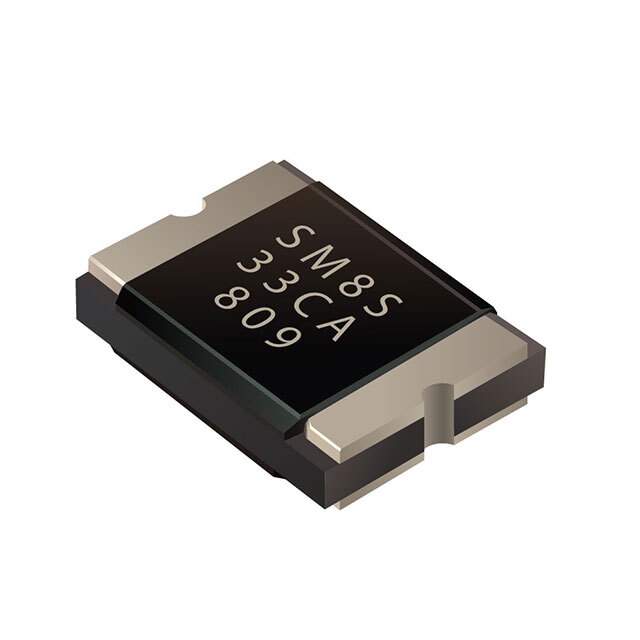

Same model may have multiple batches, images only for reference.

SM8SF24CA-Q

Name: SM8SF24CA-Q
Brand: Bourns Inc.
SKU: 1301565
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SM8SF24CA-Q
Manufacturer	Bourns Inc.
Catalog	TVS - Diodes
Datasheet	SM8SF24CA-Q Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Bourns Inc.
Series	Automotive, AEC-Q101, SM8SF-Q
Package	Tape & Reel
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	24V
Voltage - Breakdown (Min)	26.7V
Voltage - Clamping (Max) @ Ipp	38.9V
Current - Peak Pulse (10/1000µs)	180A
Power - Peak Pulse	7000W (7kW)
Power Line Protection	No
Applications	Automotive
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting	SMD (SMT)
Package / Case	2-LDFN
Supplier Device Package	2-DFN (8.1x10.5)
Base Product Number	SM8SF
Other Names	SM8SF24CA-QCT,SM8SF24CA-QTR,SM8SF24CA-QDKR
Standard Package	750
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1301565-SM8SF24CA-Q
Ultra Librarian 3D Model	Ultra Librarian SM8SF24CA-Q CAD Model

Alternative Products

Description

The SM8SF24CA-Q is a Zener type TVS diode from Bourns Inc. that is designed for use in automotive applications.

Manufacturer: Bourns Inc.
Type: Zener
Application: Automotive
Channel: Bidirectional
Reverse Standoff Voltage: 24V
Breakdown Voltage: 26.7V
Clamping Voltage @ Ipp @ a peak pulse power of: 38.9V @ 7000W (7kW)
Mounting: SMD (SMT) technology
Package: Tape & reel
Standard Package: 750
Package: 2-LDFN
Operating Temperature Range: -55°C to 175°C (TJ)
