Same model may have multiple batches, images only for reference.
SRF0703A-820M Real Image
Same model may have multiple batches, images only for reference.

SRF0703A-820M

Part No SRF0703A-820M
Manufacturer Bourns Inc.
Catalog Arrays, Signal Transformers
Datasheet
SRF0703A-820M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Bourns Inc.
Series SRF0703A
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 82 µH
Inductance - Connected In Series 324.7 µH
Tolerance ±20%
Current Rating - Parallel 860 mA
Current Rating - Series 430 mA
Current Saturation - Parallel 890 mA
Current Saturation - Series 440 mA
DC Resistance (DCR) - Parallel 610mOhm Max
DC Resistance (DCR) - Series 2.28Ohm Max
Shielding Shielded
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.299" L x 0.299" W (7.60mm x 7.60mm)
Height 0.142" (3.60mm)
Base Product Number SRF0703A
Other Names SRF0703A-820MCT,SRF0703A-820MTR,SRF0703A-820MDKR
Standard Package 1,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1275000-SRF0703A-820M
Ultra Librarian 3D Model Ultra Librarian SRF0703A-820M CAD Model

Description

The Bourns Inc. SRF0703A-820M is a shielded inductor array with two coils that can be connected in parallel or series.

  • Current Rating (Parallel): 860 mA (max)
  • Current Rating (Series): 430 mA (max)
  • Saturation Current: 890 mA (Parallel)
  • Saturation Current: 440 mA (Series)
  • Inductance (Series): 324.7 µH
  • Inductance (Parallel): 82 µH
  • Package: Tape and Reel
  • Package Size: 0.299" L x 0.299" W (7.60mm x 7.60mm) Nonstandard
  • Tolerance: ±20%
  • Rating: AEC-Q200
  • Temperature Range: -40°C to 125°C

You May Also Be Interested in

DRQ125-2R2-R Real Image
DRQ125-2R2-R
Eaton Bussmann
INDUCT ARRAY 2 COIL 2.208UH SMD
Need more? Email Us
SRF1280-101M Real Image
SRF1280-101M
Bourns Inc.
INDUCT ARRAY 2 COIL 100UH SMD
Lowest to $2.3232

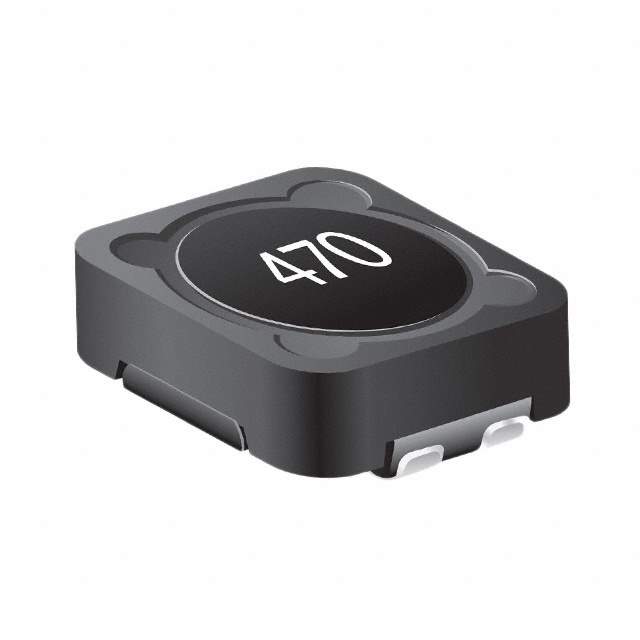

DRQ74-470-R Real Image
