Same model may have multiple batches, images only for reference.

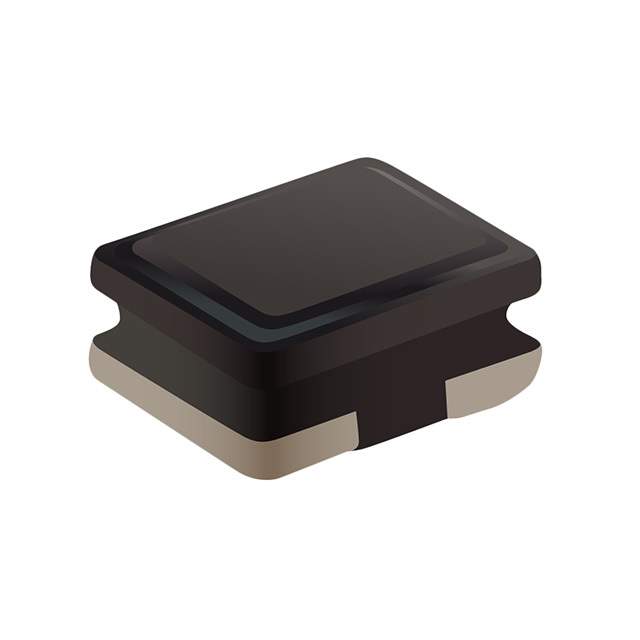

SRN2009T-4R7M Real Image
Same model may have multiple batches, images only for reference.

SRN2009T-4R7M

Part No SRN2009T-4R7M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN2009T-4R7M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN2009T
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 750 mA
Current - Saturation (Isat) 750mA
Shielding Semi-Shielded
DC Resistance (DCR) 400mOhm
Q @ Freq 15 @ 1MHz
Frequency - Self Resonant 90MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 0806 (2016 Metric)
Supplier Device Package 0806 (2016 Metric)
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.037" (0.95mm)
Base Product Number SRN2009T
Other Names SRN2009T-4R7MCT,SRN2009T-4R7MTR,SRN2009T-4R7MDKR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274441-SRN2009T-4R7M
Ultra Librarian 3D Model Ultra Librarian SRN2009T-4R7M CAD Model

Description

The SRN2009T is a fixed inductor designed for electronic circuits.

  • Core: drum core
  • Type: wirewound
  • Shielding: semi-shielded
  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • Series: Bourns Inc. SRN2009T
  • Q @ Freq: 15 @ 1MHz
  • Frequency of Self-Resonant: 90MHz
  • DC Resistance (DCR): 400mOhm
  • Height: seated (max) 0.037" (0.95mm)
  • Package: tape and reel
  • Mounting: SMD (SMT)
  • ECCN: EAR99 compliant
  • REACH: unaffected
  • HTSUS code: 8504.50.8000
  • Current Rating: 750 mA
  • MSL Level: not applicable
  • Package/Case: 0806 (2016 Metric)
  • Standard Package: 2,000
